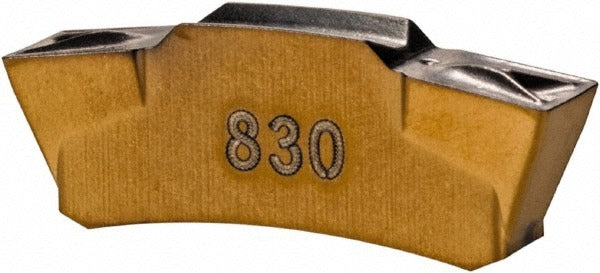

Iscar 6450128 TGMF302F IC830 Grooving Insert 3mm Top Grip

Product Description

The ISCAR 6450128 is a solid carbide grooving insert designed for precision external grooving and parting operations on CNC lathes and turning centers. Designated grade IC830 with an AlTiN and TiN PVD coating, this insert delivers thermal resistance and edge wear performance needed when cutting superalloys and titanium. The double-ended TGMF302F geometry provides a 3.00 mm cutting width and a maximum depth of cut of 1.80 mm, with a 0.20 mm corner radius and a chip breaker style F profile. It is held in place by a top clamp mechanism and belongs to the ISCAR Top Grip tooling series. Installation is handled by machining professionals in production and job shop environments.

This insert is intended for use in CNC turning applications where tight groove tolerances are required on difficult-to-machine materials. The IC830 grade is rated for primary workpiece materials classified under ISO material codes M, P, and S, covering steels, stainless steels, superalloys, and titanium alloys. The neutral hand orientation and double-end design allow versatile positioning in compatible Top Grip insert holders. It is sold individually but carries a minimum order quantity of 10 units.

Key Features

• IC830 solid carbide grade with PVD-applied AlTiN and TiN coating for heat and wear resistance
• 3.00 mm cutting width with a maximum depth of cut of 1.80 mm
• Double-ended insert design extends usable tool life per unit
• F-style chip breaker geometry promotes chip control in ductile and high-strength alloys
• Top clamp holding method via ISCAR Top Grip series toolholders
• Neutral hand orientation for flexible holder compatibility
• Conforms to ISO 13399 tooling data standards

Compatibility

Designed for use with ISCAR Top Grip series insert holders that accept TGMF-style inserts with a 302 insert size code. Rated for machining superalloys and titanium as primary workpiece materials per ISO material codes M, P, and S.

Installation Notes

This insert is installed and serviced by qualified machinists or tooling technicians on CNC lathes and turning centers. Power down the machine and engage all lockout-tagout procedures before changing inserts. Seat the insert fully in the pocket and confirm the top clamp is tightened securely before resuming cuts. Do not exceed the rated maximum depth of cut of 1.80 mm per pass.
