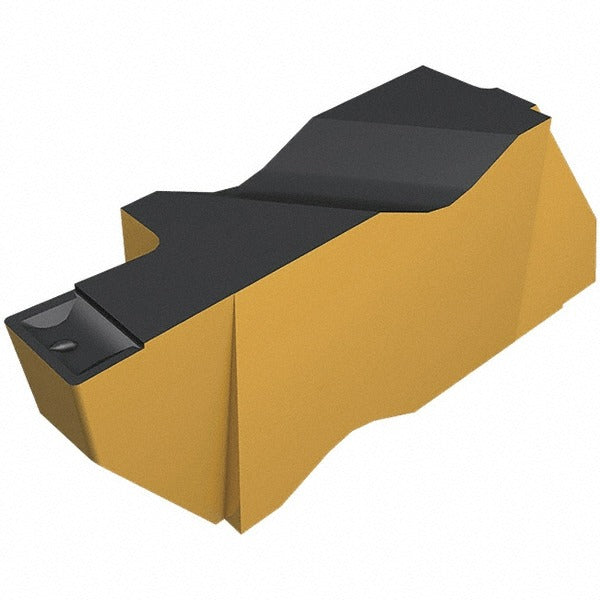

Iscar 6411918 Grooving Insert ING3062 IC807 Solid Carbide

Product Description

The ISCAR 6411918 is a solid carbide grooving insert designed for precision external and internal grooving operations on CNC lathes and turning centers. Manufactured in the ING style with insert size code 3062CB, it carries the IC807 grade designation, which is based on a submicron carbide substrate with a PVD-applied TiAlN and TiN multilayer coating. The overall length measures 0.89 inches (22.60 mm), and the corner radius is 0.0075 inches (0.19 mm). This insert belongs to the Notch-Grip series and is intended for installation by machinists and tooling technicians performing high-precision turning work.

The 6411918 is rated for universal primary workpiece material compatibility, covering ISO material groups H, K, M, P, and S. This broad applicability makes it suitable for grooving steel, stainless steel, cast iron, non-ferrous alloys, and heat-resistant superalloys in both production and job-shop environments. The maximum depth of cut reaches 3.05 mm. It is well suited for tight-tolerance groove profiles where consistent edge geometry and coating durability are required across varied material types.

Key Features

• IC807 submicron carbide grade with PVD TiAlN and TiN coating for wear resistance across multiple material groups
• ING insert style in Notch-Grip series for secure clamping and repeatable seating
• Corner radius of 0.0075 inches (0.19 mm) for fine groove geometry control
• Maximum depth of cut of 3.05 mm suitable for moderate grooving applications
• ISO 13399 compliant tooling data for integration with CAM and tooling management systems
• Multi-use capable insert geometry extending tool life across diverse workpiece materials

Compatibility

Designed for use with ISCAR Notch-Grip series grooving toolholders that accept ING-style inserts with size code 3062. Compatible with ISO code ING3062RCB IC807 tooling setups per ISO 13399 standards.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician with the machine fully powered down and the spindle locked before insert exchange. Use the appropriate ISCAR Torx or hex key to seat the insert securely in the Notch-Grip pocket, ensuring the locating surfaces are clean and free of chips or debris. Do not exceed the recommended depth of cut for the insert size. Follow the toolholder manufacturer's clamping torque specifications as documented in the toolholder product data sheet.
