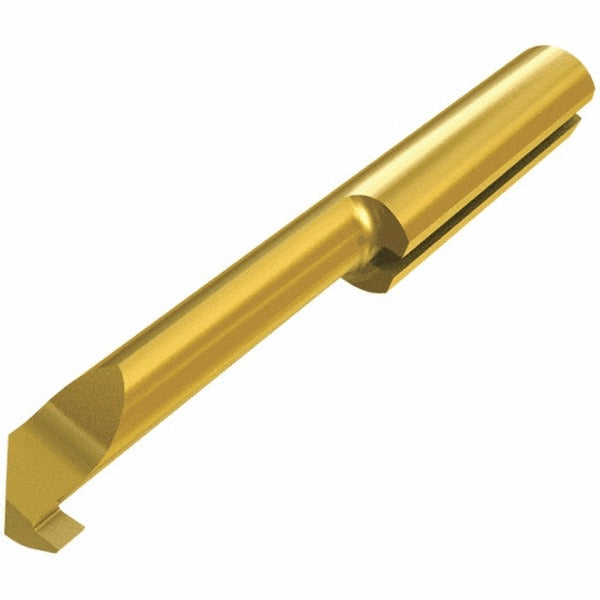

Iscar 6411173 Internal Grooving Tool 1.50 Mm Groove

Product Description

The ISCAR 6411173 is a solid carbide internal grooving tool designed for left-hand cutting in bore grooving operations. The tool features an 8.00 mm shank diameter and a 1.50 mm groove width, making it suited for precision internal groove machining in tight bore diameters. With an overall length of 72.00 mm and a projection of 1.80 mm, this tool is engineered for controlled material removal in small-diameter bores. Solid carbide construction provides rigidity and wear resistance under demanding cutting conditions. This tool is typically installed and operated by machinists on CNC turning centers or manual lathes.

The ISCAR 6411173 is intended for internal grooving applications in bores with a minimum hole diameter of 7.70 mm. It is suited for use in precision machining environments including job shops, aerospace component manufacturing, and general metalworking operations where controlled groove geometry is required. The left-hand cutting direction suits specific bore orientations and machine configurations where right-hand tooling is not appropriate. The 0.75 mm radius and 47.00 mm maximum hole depth define its practical reach within a workpiece.

Key Features

• Solid carbide construction for rigidity and extended tool life in hard and abrasive materials
• 1.50 mm groove width for precise internal groove geometry
• Left-hand cutting direction for compatibility with specific bore orientations
• 8.00 mm shank diameter with 72.00 mm overall length for stable toolholder engagement
• 1.80 mm projection allows groove cutting without interference in confined bores
• Minimum hole diameter of 7.70 mm defines the smallest bore this tool can enter

Compatibility

Designed as an OEM-style internal grooving tool for use in toolholding systems that accept an 8.00 mm shank diameter; verify toolholder bore size, clamping method, and left-hand cutting direction requirement before installation.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer's toolholder specifications. Ensure the machine spindle and all axes are fully stopped and locked out before mounting or adjusting the tool. Confirm shank seating depth and projection measurement against the intended groove location before initiating a cut. Do not exceed the maximum hole depth of 47.00 mm to avoid tool deflection or breakage.
