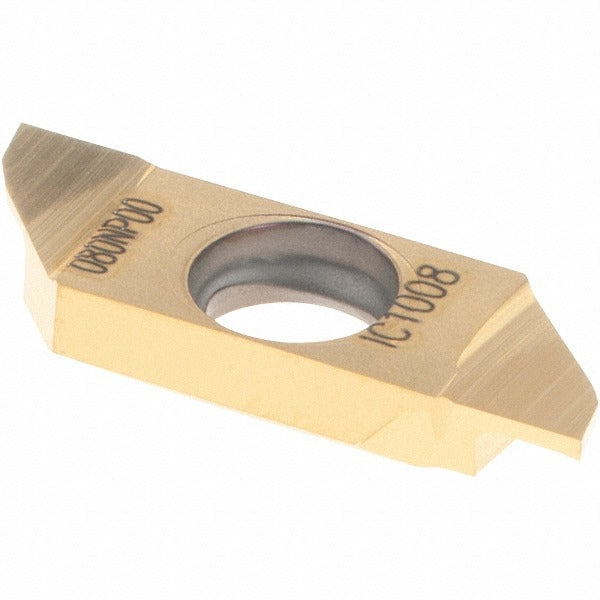

Iscar 6410067 Cutoff Insert SCIR22-080NP00 IC1008 Carbide

Product Description

The ISCAR 6410067 is a solid carbide cutoff and grooving insert carrying the manufacturer part designation SCIR22-080NP00 in the Swisscut series. It is designed for grooving, parting, and turning operations on CNC lathes and Swiss-type screw machines. The insert features a 0.8 mm (0.0315 inch) cutting width, a neutral lead angle, and a right-hand orientation. The IC1008 grade substrate is finished with a PVD-applied TiAlN and TiN coating, providing wear resistance across a broad range of workpiece materials. A screw-clamping holding method keeps the insert seated securely under the lateral forces typical of parting and deep-groove operations. Machinists and CNC tool setters working in production turning environments are the primary installers.

This insert is suited for grooving, parting, and light turning on a wide range of materials, classified under ISO workpiece material groups H, K, M, N, P, and S. The Swisscut series is engineered for Swiss-type automatic lathes and small-diameter precision turning centers where minimal cutting width and tight tolerances are critical. The P chipbreaker geometry controls chip flow in these confined cutting environments. The insert accommodates a maximum depth of cut of 2.50 mm (0.0984 inch), making it appropriate for shallow-to-moderate groove depths common in precision part production.

Key Features

• 0.8 mm (0.0315 inch) cutting width for narrow grooving and parting operations
• IC1008 solid carbide grade with PVD TiAlN and TiN coating for extended tool life
• Neutral lead angle with right-hand insert orientation
• Screw-clamping holding method for secure, repeatable seating
• P chipbreaker for controlled chip formation in Swiss-type and precision turning applications
• Compatible with ISO 13399 tooling data standards for CAM and presetter integration

Compatibility

Designed for use in Swisscut series toolholders that accept the SCIR 22 insert style. Fits screw-clamp insert seats sized for a 22 mm overall length, 7.00 mm cutting height, and 3.00 mm overall width insert body. Consult the ISCAR Swisscut toolholder catalog to confirm seat compatibility before ordering.

Installation Notes

Installation should be performed by a qualified CNC machinist or tool setter with the machine powered down and all axes at a safe position. Use the specified torx or hex key recommended by the toolholder manufacturer to seat the clamping screw to the correct feel — do not overtighten, as solid carbide inserts are brittle and susceptible to cracking under excessive clamp force. Inspect the insert pocket for chips, debris, or wear before seating a new insert. Verify insert orientation and chipbreaker direction against the toolholder specification sheet before returning the machine to service.
