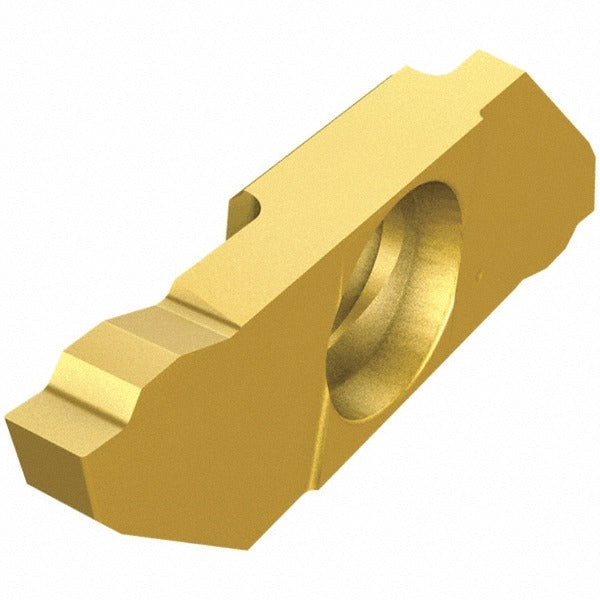

Iscar 6410058 Carbide Cutoff Insert 2 Mm Grooving

Product Description

The ISCAR 6410058 is a solid carbide cutoff and grooving insert from the Swisscut series, designed for precision parting and grooving operations on CNC Swiss-type and turning machines. It carries manufacturer grade IC1008 with a PVD-applied TiAlN and TiN coating for wear resistance across a wide range of workpiece materials. The insert features a 2.00 mm cutting width, a 16-degree right-hand lead angle, and a 7-degree relief angle. It is screw-held for secure, repeatable positioning and is rated for a maximum depth of cut of 7.00 mm. Licensed machinists and CNC operators are the primary installers of this insert.

This insert is suited for grooving and parting applications on materials spanning multiple ISO workpiece categories, including cast iron, non-ferrous alloys, stainless steel, steel, and superalloys. The universal primary workpiece material designation makes it a versatile choice for production shops running mixed-material jobs. It is intended for use in compatible Swisscut series toolholders and is applicable to both single-part and high-volume production runs where consistent groove width and surface finish are required.

Key Features

• Solid carbide construction with IC1008 grade for toughness and edge retention
• PVD-applied TiAlN and TiN dual coating for extended tool life across workpiece materials
• 2.00 mm cutting width with a 16-degree right-hand lead angle for controlled chip flow
• Screw-held insert style for secure clamping and repeatable indexing
• Maximum depth of cut of 7.00 mm suits standard parting and deep-groove applications
• Compatible with ISO 13399 tooling data standards for digital integration

Compatibility

Designed for use in Swisscut series toolholders accepting SCIL style inserts with a 22 mm overall length. Manufacturers catalog number SCIL 22-200R16-00 applies. Confirm toolholder compatibility before installation.

Installation Notes

Installation is performed by a qualified machinist or CNC setup technician. Power down and lock out the machine spindle before indexing or replacing inserts. Use the designated insert screw and a calibrated torque driver to seat the screw-held insert; do not overtighten by hand. Inspect the toolholder pocket for wear or debris before seating the new insert to ensure proper contact and alignment.
