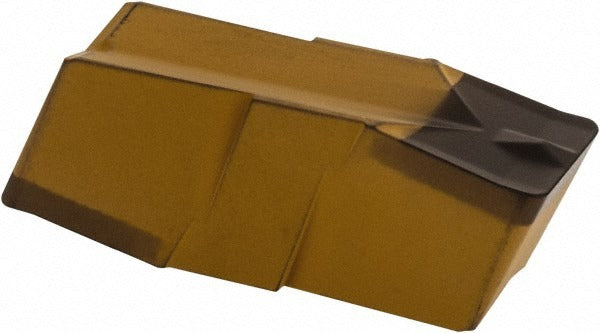

Iscar 6405262 Grooving Insert IC8250 5.55mm Cut-grip

Product Description

The ISCAR 6405262 is a solid carbide double-ended grooving insert from the Cut-Grip series, designed for external grooving and parting operations on CNC lathes and turning centers. It carries grade IC8250, a PVD-coated carbide grade with an Al2O3 finish engineered for wear resistance on demanding workpiece materials. The insert delivers a 5.55 mm cutting width and a maximum depth of cut of 3.30 mm. A positive rake angle of 7 degrees and an E chip breaker geometry promote chip control and reduce cutting forces. Clamp-style insert holding secures the insert in compatible Cut-Grip toolholders during high-feed passes.

This insert is suited for grooving and cutoff operations in both production and job-shop environments. Primary workpiece materials are stainless steel and steel, classified under ISO material groups M and P. The double-ended design provides two usable cutting edges per insert, reducing per-edge tooling cost in high-volume turning applications. A corner radius of 0.55 mm supports clean groove geometry and helps manage stress concentration at the groove root. Licensed machinists and CNC operators working in metal-cutting environments are the typical end users.

Key Features

• Double-ended insert provides two cutting edges per unit
• IC8250 PVD-coated carbide grade with Al2O3 finish for wear resistance on steel and stainless steel
• 5.55 mm cutting width with a maximum depth of cut of 3.30 mm
• Positive rake angle of 7 degrees with E chip breaker for active chip control
• Clamp-style holding method compatible with Cut-Grip series toolholders
• Complies with ISO 13399 cutting tool data representation standard

Compatibility

Designed for use with Cut-Grip series clamp-style toolholders that accept the GIP 555E insert size. Compatible with CNC lathes and turning centers machining stainless steel and steel workpieces under ISO material groups M and P.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before seating or removing the insert. Use the appropriate torx or clamping key specified for the Cut-Grip toolholder to secure the clamp; do not overtighten by hand or with non-specified tools. Inspect the insert seat and clamp for chips or debris before seating a new edge to ensure proper contact and repeatability.
