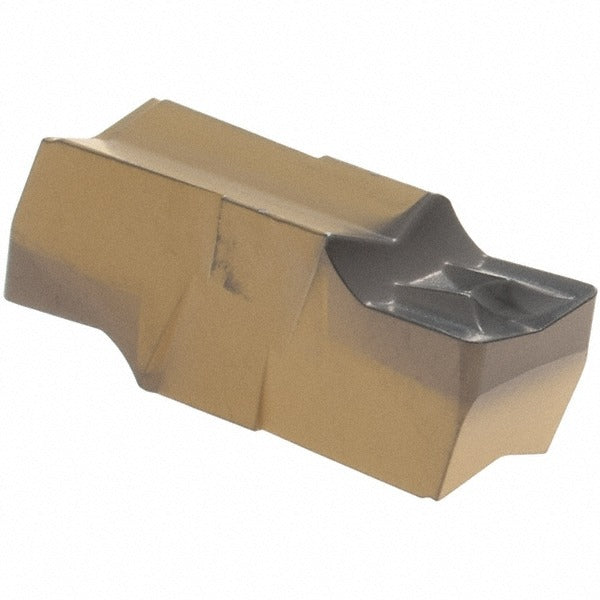

Iscar 6405207 Grooving Insert GIFI500E050F IC8250

Product Description

The ISCAR 6405207 is a solid carbide double-ended grooving insert in the Cut-Grip series, designed for precision grooving and parting operations on CNC lathes and turning centers. It carries the IC8250 manufacturer grade with a CVD-applied Al2O3 coating that provides thermal resistance and wear protection during high-speed cutting. The insert features a 5.00 mm cutting width, a maximum depth of cut of 15.49 mm, and a self-grip holding method that seats securely in compatible Cut-Grip toolholders. The F chip breaker geometry and positive rake angle of 8 degrees promote efficient chip evacuation. Licensed machinists and CNC operators install this insert in production and job-shop turning applications.

This insert is suited for grooving stainless steel and carbon steel workpiece materials in both roughing and finishing passes within the defined depth-of-cut range. The neutral hand orientation makes it compatible with standard straight grooving setups. The double-end design extends usable tool life by providing two cutting edges per insert. With a cutting height of 5.00 mm and an overall length of 15.70 mm, it fits turning centers where compact insert geometry is required for tight-clearance grooving work.

Key Features

• Solid carbide substrate with IC8250 grade and CVD Al2O3 coating for heat and wear resistance
• 5.00 mm cutting width with a maximum depth of cut of 15.49 mm
• Double-ended insert provides two cutting edges per piece for extended service life
• Positive rake angle of 8 degrees with F chip breaker geometry for efficient chip control
• Self-grip holding method for secure seating in Cut-Grip compatible toolholders
• Neutral hand orientation suits standard straight grooving setups

Compatibility

Designed for use in ISCAR Cut-Grip series toolholders that accept the GIFI 500E insert size. Primary workpiece materials are stainless steel and carbon steel. Conforms to ISO 13399 standards with ISO code GIFI 5.00E-0.50.

Installation Notes

Installation is performed by qualified CNC machinists or toolroom technicians. Power down and de-energize the machine spindle before seating or removing the insert. Verify that the toolholder pocket is clean and free of chips or debris before installing to ensure proper self-grip seating. Do not exceed the maximum depth-of-cut range of 10.00 mm to 20.00 mm for which this insert is rated.
