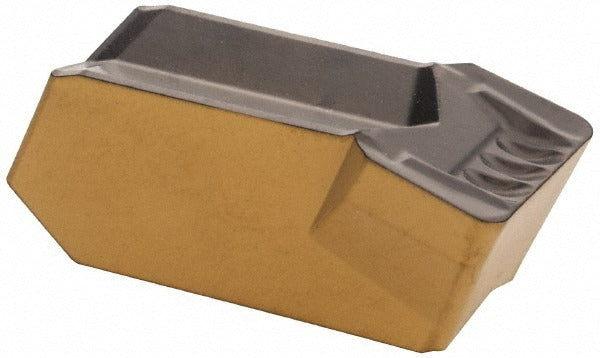

Iscar 6405111 GIMY808Y IC830 Grooving Insert 8mm

Product Description

The ISCAR 6405111 is a solid carbide grooving insert in the Cut-Grip series, designed for precision grooving operations on CNC lathes and turning centers. Designated style GIMY808Y with manufacturer grade IC830, this insert features an AlTiN and TiN PVD coating applied over a solid carbide substrate. The cutting width is 8 mm with a maximum depth of cut of 4.8 mm. The neutral hand orientation and positive 7-degree rake angle reduce cutting forces and support smooth chip evacuation. A 0.80 mm corner radius adds edge stability during profiling and light grooving passes. This insert is installed by machinists and CNC tooling technicians working in precision metalcutting environments.

The ISCAR 6405111 is intended for grooving and parting applications where high heat resistance and edge toughness are required. The IC830 grade with PVD AlTiN and TiN coating is optimized for cutting superalloys and titanium, placing this insert in demanding aerospace, medical, and energy-sector turning applications. The chip breaker designation Y and positive rake geometry help manage chip formation in these difficult-to-machine materials. The insert measures 15.30 mm in overall length with an overall width of 8 mm, and it is held in place by a clamp-style insert holding method compatible with Cut-Grip series toolholders.

Key Features

• IC830 grade solid carbide with PVD AlTiN and TiN coating for high-temperature wear resistance
• 8 mm cutting width with a maximum depth of cut of 4.8 mm
• Positive 7-degree rake angle reduces cutting forces in superalloy and titanium workpieces
• 0.80 mm corner radius for edge stability during grooving and profiling
• Neutral hand orientation supports use in standard right-hand Cut-Grip toolholders
• Multi-use capable insert conforming to ISO 13399 standards

Compatibility

Designed for use with ISCAR Cut-Grip series clamp-style toolholders accepting size 808 inserts. Optimized for primary workpiece materials classified under ISO material codes M, P, and S, including superalloys and titanium.

Installation Notes

This insert is installed and replaced by machinists or CNC tooling technicians. Power down and lock out the machine spindle before seating or removing the insert. Use the correct clamp screw torque as specified by the toolholder manufacturer documentation for Cut-Grip series bodies. Inspect the insert seat and clamp for chips or debris before installation to ensure proper seating and prevent premature edge failure.
