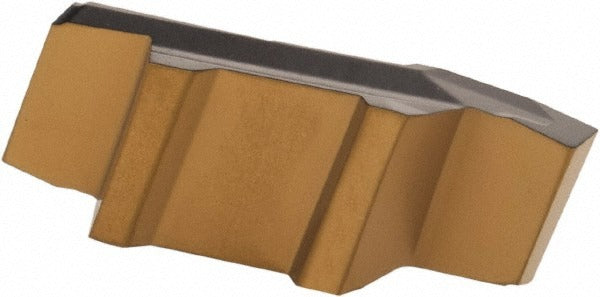

Iscar 6405038 Grooving Insert IC830 1.57mm Cut Width

Product Description

The ISCAR 6405038 is a solid carbide grooving insert from the Cut-Grip series, designed for external grooving and parting operations on CNC lathes and turning centers. It carries the GIP157015X designation with a 1.57 mm (0.0618 inch) cutting width and a maximum depth of cut of 2.70 mm (0.1063 inch). The IC830 grade features a PVD-applied AlTiN and TiN coating, delivering wear resistance and thermal stability during interrupted cuts and high-speed passes. The double-ended design extends usable insert life. Installation and replacement are handled by licensed machinists or CNC tooling technicians.

This insert is primarily suited for machining superalloys and titanium, making it appropriate for aerospace, medical, and high-performance industrial applications where tight tolerances and difficult-to-machine materials are the norm. The positive 7-degree rake angle reduces cutting forces on thin-walled or delicate workpiece features. The X chip breaker geometry assists with chip control during grooving in gummy or stringy materials. It is held in place by a clamp-style toolholder compatible with the Cut-Grip system.

Key Features

• IC830 grade with PVD AlTiN and TiN coating for extended tool life in superalloys and titanium
• 1.57 mm cutting width with 2.70 mm maximum depth of cut
• Double-ended insert for increased value per unit
• Positive rake angle of 7 degrees reduces cutting forces
• X chip breaker geometry for improved chip control in difficult materials
• Corner radius of 0.15 mm (0.0059 inch) for controlled grooving geometry

Compatibility

Designed for use with Cut-Grip series clamp-style toolholders that accept the GIP 157015 insert size. Compatible toolholders must support right-hand cutting orientation. Refer to ISCAR Cut-Grip toolholder specifications to confirm fitment before ordering.

Installation Notes

This insert is installed and replaced by qualified machinists following standard CNC tooling procedures. Power down and lock out the machine spindle before handling any cutting insert. Use the appropriate clamp key or torx wrench as specified by the toolholder manufacturer — do not overtighten or use substituted fasteners. Inspect the toolholder seat and clamp for wear or debris before seating the insert.
