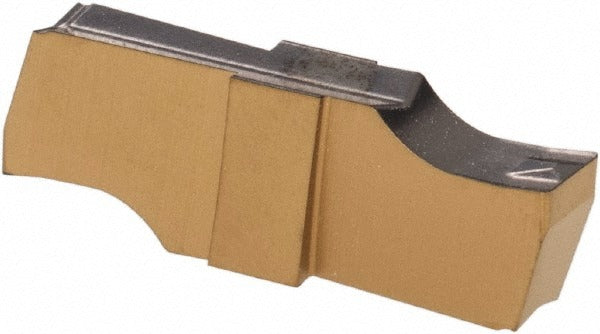

Iscar 6405008 Grooving Insert GIPI250020P IC830 Solid Carbide

Product Description

The ISCAR 6405008 is a solid carbide grooving insert carrying the GIPI250020P geometry in the IC830 manufacturer grade. It is designed for external grooving and parting operations on CNC lathes and turning centers. The insert features a 2.5 mm cutting width and a maximum depth of cut of 6.00 mm, making it well suited for precision groove profiles in demanding workpiece materials. The PVD-applied AlTiN and TiN dual coating delivers heat resistance and extended tool life when cutting superalloys and titanium. A double-ended design provides two usable cutting edges per insert, reducing tooling cost per edge. This insert is installed and replaced by CNC machinists and toolroom technicians.

The 6405008 belongs to the ISCAR Cut-Grip series, which is engineered for grooving and parting on turning equipment in both production and job-shop environments. The primary workpiece materials are superalloys, titanium, and steels, corresponding to ISO material codes M, P, and S. The positive rake angle of 8 degrees and P chip breaker geometry help manage chip evacuation in these tough materials. It is a neutral-hand insert suitable for standard front-mounted toolholders in conventional and Swiss-style turning applications.

Key Features

• Solid carbide substrate in IC830 grade for toughness in superalloy and titanium cutting
• PVD AlTiN and TiN dual coating for elevated heat resistance and extended edge life
• 2.5 mm cutting width with a 0.20 mm corner radius for precise groove geometry
• Double-ended insert delivers two cutting edges per unit
• Positive 8-degree rake angle with P chip breaker for controlled chip flow
• Clamp-style insert holding for secure, repeatable seating in Cut-Grip toolholders
• Conforms to ISO 13399 tooling data standards

Compatibility

Designed for use in ISCAR Cut-Grip series toolholders that accept the GIPI insert style and 250020 insert size. Compatible with turning and grooving operations on superalloys, titanium, and steels per ISO material codes M, P, and S.

Installation Notes

Installation is performed by a qualified CNC machinist or toolroom technician. Power down and lock out the machine spindle before seating or removing any insert. Use the appropriate ISCAR clamping key to secure the insert in the toolholder; do not over-torque the clamp screw beyond the toolholder manufacturer specification. Inspect the insert pocket for chips or damage before seating a new edge.
