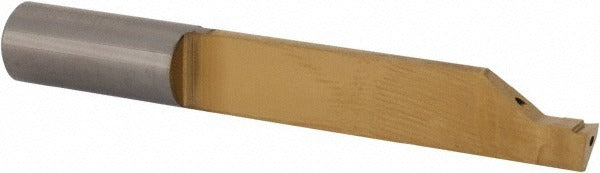

Iscar 6404152 Face Grooving Tool Solid Carbide

Product Description

The ISCAR 6404152 is a solid carbide face grooving tool designed for internal face grooving operations on CNC lathes and turning centers. With an 8 mm shank diameter and a 3 mm groove width, it delivers precise, repeatable groove geometry in bores starting at 20 mm minimum hole diameter. The solid carbide construction provides the rigidity and wear resistance required for consistent performance in ferrous and non-ferrous materials. Overall length is 60 mm, keeping the tool compact for confined bore access. This tool is installed and used by machinists and tool-and-die professionals performing precision turning operations.

This face grooving tool is suited for internal grooving applications on production and job-shop turning equipment. It performs face groove cuts to a maximum hole depth of 40 mm, making it appropriate for a range of bore depths encountered in component machining. The 8 mm shank diameter fits compatible boring bar holders and quick-change tooling systems that accept that shank size. Typical applications include groove cutting for snap-ring seats, seal grooves, and stepped bore profiles in both prototype and production environments.

Key Features

• Solid carbide construction for rigidity and extended tool life
• 3 mm groove width for precise face groove geometry
• 8 mm shank diameter compatible with standard boring bar holders
• Minimum bore entry of 20 mm supports compact workpiece applications
• Maximum depth of cut to 40 mm suitable for a range of bore depths
• Compact 60 mm overall length for access in confined bore conditions

Compatibility

Designed as an OEM-style replacement and standard tooling option for CNC lathes and turning centers that accept 8 mm shank face grooving tools with a 3 mm groove width insert profile.

Installation Notes

Installation is performed by qualified machinists or tooling setup technicians. Ensure the machine spindle is fully stopped and the machine is placed in a safe lockout state before changing or adjusting tooling. Secure the shank firmly in the toolholder to the specified clamping torque per the machine or toolholder manufacturer guidelines. Verify tool runout and alignment before commencing the grooving pass.
