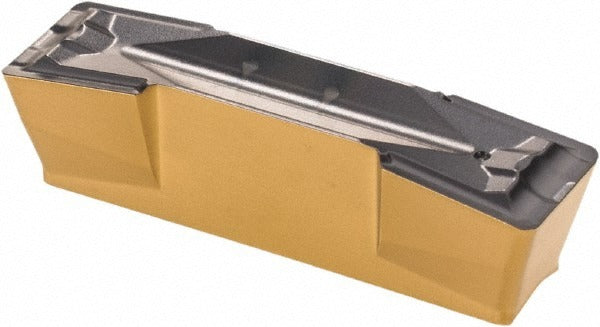

Iscar 6404093 Grooving Insert GDMN808N IC808 Solid Carbide

Product Description

The ISCAR 6404093 is a solid carbide grooving insert with the GDMN808N geometry and IC808 manufacturer grade, designed for use in Cut-Grip series grooving toolholders. It delivers a cutting width of 0.315 inches and a maximum depth of cut of 1.063 inches, making it suitable for medium to deep grooving operations on a lathe. The insert features an AlTiN, TiAlN, and TiN multilayer coating applied via PVD process, which improves wear resistance and performance across a broad range of workpiece materials. Neutral hand orientation makes it compatible with straight-shank and cut-off applications. This insert is installed and changed by machinists and CNC lathe operators in production and job-shop environments.

The ISCAR 6404093 is rated for universal primary workpiece material compatibility, covering ISO material groups H, K, M, P, and S. This includes steel, stainless steel, cast iron, non-ferrous metals, and high-temperature alloys. It is well suited to OD grooving, face grooving, and part-off operations on CNC and manual lathes. The double-end design extends usable insert life by providing two cutting edges per insert. The positive rake geometry helps reduce cutting forces, which is beneficial when working with harder or more demanding materials.

Key Features

• Solid carbide substrate with IC808 grade for high hardness and wear resistance
• PVD-applied AlTiN, TiAlN, and TiN multilayer coating for broad material compatibility
• 0.315 inch cutting width with a maximum depth of cut of 1.063 inches
• Double-end insert design provides two usable cutting edges per piece
• Positive rake angle reduces cutting forces across ISO H, K, M, P, and S material groups
• Corner radius of 0.0315 inches supports controlled surface finish at groove edges
• Meets ISO 13399 tooling data standards for system integration

Compatibility

Designed for use in ISCAR Cut-Grip series grooving toolholders that accept the GDMN 808 insert style. Compatible with lathe setups running universal workpiece materials across ISO groups H, K, M, P, and S.

Installation Notes

Insert changes should be performed by a qualified machinist with the machine fully powered down and the spindle locked. Use the appropriate torx or hex key as specified by the toolholder manufacturer when seating the insert. Inspect the insert pocket and clamping mechanism for wear or debris before seating a new insert. Never exceed the maximum depth of cut rating for the insert or toolholder combination in use.
