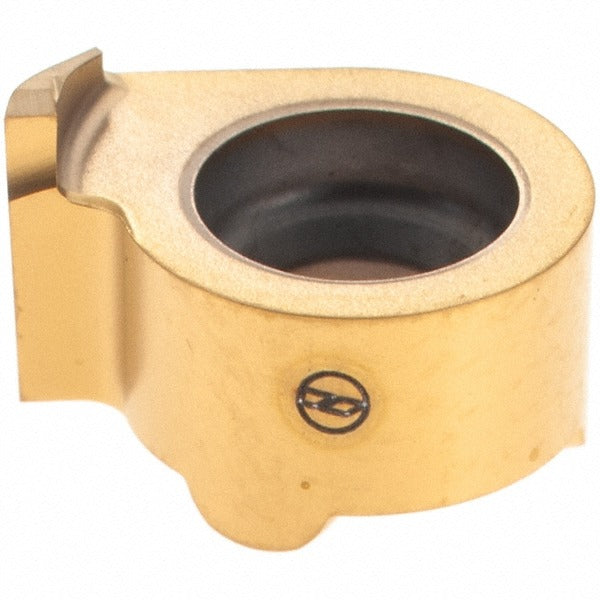

Iscar 6403052 Grooving Insert IC528 Solid Carbide 1mm

Product Description

The ISCAR 6403052 is a solid carbide grooving insert designed for precision external grooving operations in demanding machining environments. Carrying the GFQR12100005 insert style designation and IC528 manufacturer grade, this insert features a TiCN and TiN PVD coating that provides wear resistance and surface hardness suited for cutting superalloys and titanium. It delivers a 1.00 mm cutting width with a maximum depth of cut of 1.50 mm and a corner radius of 0.05 mm. The right-hand configuration and single-end design make it a straightforward drop-in for compatible ChamGroove toolholders. Machinists and CNC programmers working in aerospace and high-temp alloy applications will find this insert well suited to tight-tolerance groove profiles.

This insert belongs to ISCAR's ChamGroove series, engineered for grooving and parting operations on materials classified under ISO material codes M, P, and S, which correspond to stainless steels, carbon and alloy steels, and superalloys including titanium. It is intended for use in precision turning centers and CNC lathes where controlled groove width and depth repeatability are critical. Typical applications include external grooving, undercuts, and snap-ring grooves on aerospace components, medical parts, and precision turned parts made from difficult-to-machine alloys.

Key Features

• IC528 grade with TiCN and TiN PVD coating for wear resistance on superalloys and titanium
• 1.00 mm cutting width for narrow, precise groove profiles
• Maximum depth of cut of 1.50 mm within a range up to 2.00 mm
• 0.05 mm corner radius for controlled edge geometry
• Right-hand, single-end insert configuration
• Clamp and screw holding method for rigid, repeatable clamping in ChamGroove toolholders
• Conforms to ISO 13399 insert identification standards

Compatibility

Designed for use in ISCAR ChamGroove series toolholders that accept the GFQR insert style in size 12100005. Compatible primary workpiece materials include superalloys, titanium, stainless steels, and carbon and alloy steels per ISO material codes M, P, and S.

Installation Notes

Installation is performed by a machinist or CNC toolroom technician following standard insert-change procedures. The machine spindle must be fully stopped and the turret locked before changing inserts. Secure the insert using the specified clamp or screw holding method to the torque recommended by the toolholder manufacturer. Inspect the seating pocket for chips or debris before seating the new insert to ensure accurate positioning and prevent premature edge failure.
