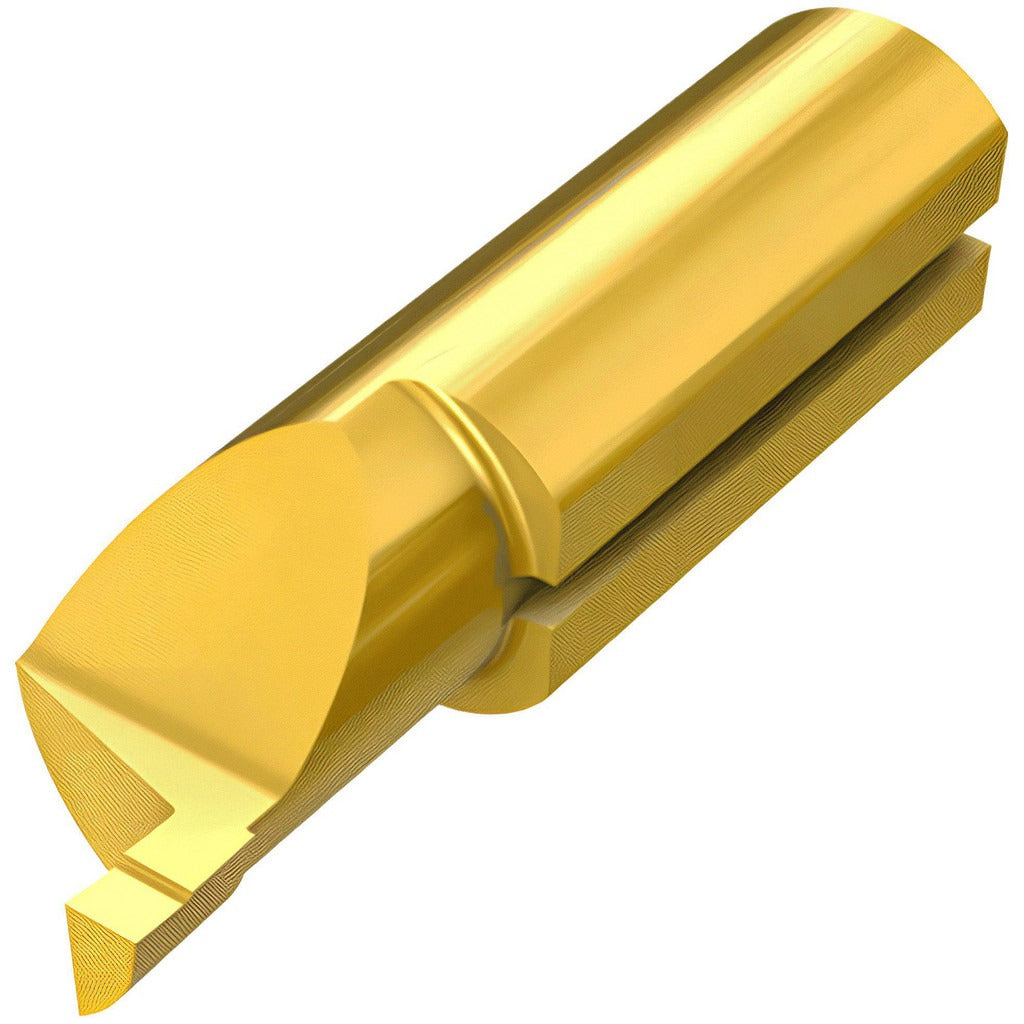

Iscar 6402833 Face Grooving Tool 1mm Groove Solid Carbide

Product Description

The ISCAR 6402833 is a solid carbide face grooving tool designed for precision internal grooving operations on small-diameter bores. With a 6 mm shank diameter and a 1 mm groove width, this tool is built for tight-tolerance applications where consistent cut geometry and material rigidity matter. The solid carbide construction provides the hardness and wear resistance needed to maintain edge integrity through repeated passes. An overall length of 26 mm and a projection of 1.50 mm make this a compact tool suited for controlled, short-reach grooving in confined bore environments. Machinists and tool-and-die professionals install this type of tooling on CNC lathes and turning centers.

This face grooving tool is intended for use in small bore applications with a minimum hole diameter of 6 mm and a maximum hole depth of 11 mm. It is well suited for residential and industrial machining environments where fine groove widths are required in precision components such as hydraulic fittings, valve bodies, and small-bore mechanical assemblies. The 1 mm groove width targets applications demanding narrow, clean groove profiles with minimal material removal per pass.

Key Features

• Solid carbide construction for high rigidity and wear resistance
• 1 mm groove width for narrow, tight-tolerance face grooves
• 6 mm shank diameter matches minimum bore entry diameter
• 26 mm overall length in a compact form factor for confined setups
• 1.50 mm projection supports controlled depth engagement
• Maximum hole depth of 11 mm suits typical small-bore grooving applications

Compatibility

Designed as an OEM-style replacement face grooving insert tool for CNC turning and lathe setups requiring a 6 mm shank with a 1 mm groove width profile.

Installation Notes

Installation is performed by qualified machinists or tooling technicians on CNC lathes or turning centers. Ensure the machine spindle is fully powered down and the turret is indexed to a safe position before mounting or removing tooling. Verify shank clamp torque and tool projection against your machine tool manual before initiating cuts. Do not exceed the rated maximum hole depth of 11 mm during grooving operations.
