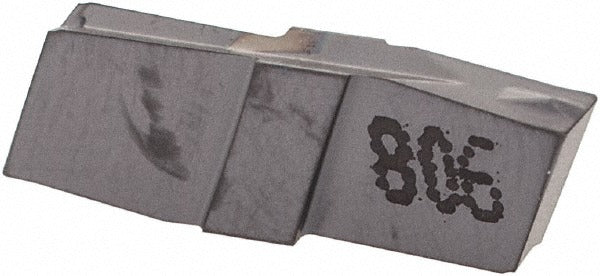

Iscar 6402816 Grooving Insert GIP247020P IC908 2.47mm

Product Description

The ISCAR 6402816 is a solid carbide grooving insert designed for precision external grooving and parting operations on CNC lathes and turning centers. This double-ended insert carries the GIP247020P geometry with a 2.47 mm cutting width and a maximum depth of cut of 5.00 mm. The IC908 carbide grade features a PVD-applied TiAlN coating that delivers thermal resistance and edge durability across a broad range of workpiece materials. The positive rake angle of 7 degrees reduces cutting forces and supports clean chip formation. Machinists and CNC tooling technicians install this insert in compatible Cut-Grip toolholders as part of routine insert replacement or production tooling setup.

This insert is suited for both production and job-shop turning environments where controlled groove width and repeatable depth of cut are required. The neutral hand orientation allows use in standard straight-cut grooving applications. The P chip breaker geometry promotes chip control during continuous grooving passes. Compatible workpiece materials span multiple ISO material groups, including steel, stainless steel, cast iron, non-ferrous alloys, and high-temperature alloys, as indicated by the material grade codes C1, C2, C6, C7 and ISO workpiece codes H, K, M, P, and S.

Key Features

• 2.47 mm cutting width with a corner radius of 0.20 mm for consistent groove geometry
• Maximum depth of cut of 5.00 mm suitable for standard external grooving applications
• IC908 grade with PVD TiAlN coating for wear resistance and thermal stability
• Positive rake angle of 7 degrees reduces cutting forces on the workpiece
• Double-ended insert design extends usable tool life per insert
• P chip breaker promotes effective chip evacuation during grooving passes

Compatibility

Designed for use in ISCAR Cut-Grip series toolholders that accept GIP-style inserts with the 247020 insert size code. Workpiece material compatibility covers ISO groups H, K, M, P, and S per the ISO 13399 standard.

Installation Notes
