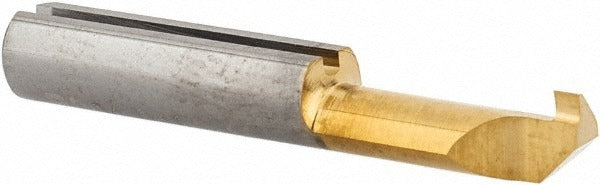

Iscar 6402336 Solid Carbide Grooving Tool 4mm Shank

Product Description

The ISCAR 6402336 is a solid carbide grooving tool designed for internal grooving operations in small-bore applications. Built from solid carbide throughout, it delivers the rigidity and edge retention needed for consistent groove geometry in demanding machining environments. The tool features a 4 mm shank diameter, a 1 mm groove width, and an overall length of 24 mm. It is suited for CNC turning centers and small-bore internal grooving work where precise, repeatable groove dimensions are critical. Machinists and toolroom technicians select this tool when tight tolerances and small bore access require a compact, rigid solution.

This grooving tool is intended for internal grooving in bores with a minimum hole diameter of 4 mm and a maximum hole depth of 9 mm. It is appropriate for use on CNC lathes and turning centers in production and job-shop environments. The 0.80 mm projection and 1 mm groove width make it well suited to applications requiring fine, narrow grooves in small bores. Typical materials machined include steel, stainless, and non-ferrous alloys, consistent with solid carbide tooling capabilities.

Key Features

• Solid carbide construction for high rigidity and wear resistance in small-bore grooving
• 1 mm groove width for precise, narrow internal groove profiles
• 4 mm shank diameter compatible with small-bore toolholding systems
• 0.80 mm projection for controlled depth engagement
• Maximum hole depth capacity of 9 mm
• Compact 24 mm overall length for tight-access bore applications

Compatibility

Designed for use in internal grooving applications requiring a 4 mm minimum bore diameter. Consult ISCAR tooling documentation to confirm holder and system compatibility for your specific setup.

Installation Notes

This tool is installed and serviced by qualified machinists or toolroom technicians on CNC turning equipment. Ensure the machine spindle is fully stopped and all motion is locked out before inserting or removing the tool from its holder. Verify shank clamping torque and holder specifications per the machine manufacturer and toolholder documentation. Do not exceed the rated maximum hole depth of 9 mm to avoid tool deflection or breakage.
