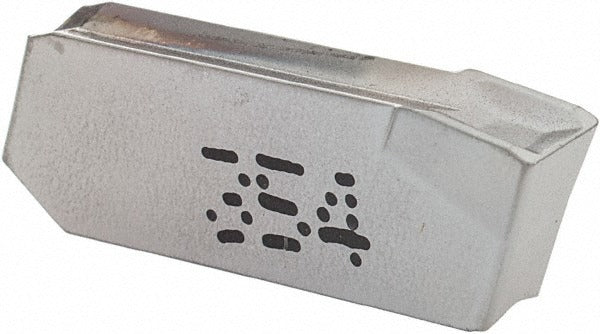

Iscar 6402137 Grooving Insert GIM3C IC354 Ticn Carbide

Product Description

The ISCAR 6402137 is a solid carbide grooving insert from the Cut-Grip series, designed for precision grooving operations on CNC lathes and turning centers. The insert features a TiCN coating applied via PVD process, which provides wear resistance and extended tool life on demanding workpiece materials. With a cutting width of 0.1181 inches (3.00 mm) and a positive rake angle of 7 degrees, this insert is engineered for clean, consistent groove profiles. The IC354 manufacturer grade is suited for moderate to high cutting speeds. A licensed machinist or CNC operator handles installation and setup in a production or job shop environment.

This insert is intended for grooving and parting applications on stainless steel and steel workpieces, corresponding to ISO material codes M and P. It is a single-end, neutral-hand insert with a GIM style and a 3C size code, making it compatible with matching Cut-Grip toolholders. The C chip breaker geometry promotes controlled chip evacuation during grooving passes. Typical applications include external grooving on turned components in aerospace, general manufacturing, and fluid system part production.

Key Features

• Solid carbide construction with PVD TiCN coating for wear resistance on steel and stainless steel
• Cutting width of 0.1181 inches (3.00 mm) for precise groove sizing
• Positive rake angle of 7 degrees reduces cutting forces and improves surface finish
• C chip breaker geometry supports controlled chip flow during grooving operations
• Single-end, neutral-hand design in GIM 3C insert style for use with Cut-Grip tooling system
• Conforms to ISO 13399 standards for cutting tool data representation

Compatibility

Designed for use with ISCAR Cut-Grip series toolholders that accept GIM 3C style grooving inserts. Suitable for machining stainless steel (ISO M) and steel (ISO P) workpieces. Verify toolholder pocket specifications before installation.

Installation Notes

Installation is performed by a qualified machinist or CNC setup technician. Power down and lock out the machine spindle before seating or replacing inserts. Use the appropriate torx or clamp screw driver specified by the toolholder manufacturer to secure the insert without overtightening. Inspect the toolholder pocket for damage or debris before seating a new insert to ensure proper support and accurate cutting geometry.
