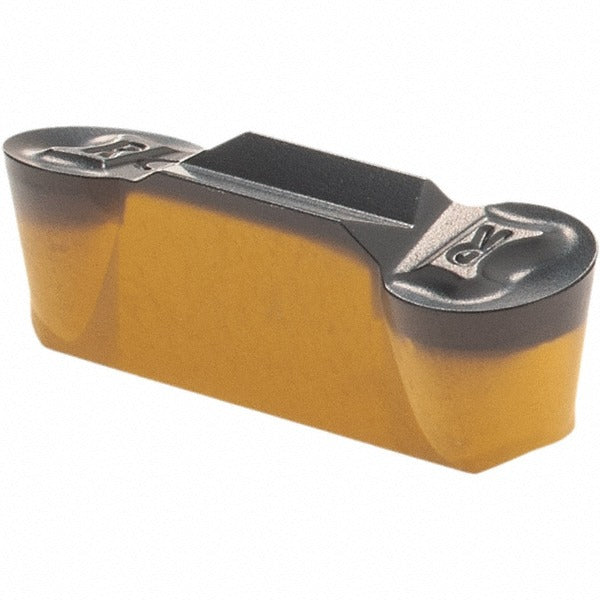

Iscar 6200377 HFPR6030 IC8250 Grooving Insert 6mm

Product Description

The ISCAR 6200377 is a solid carbide grooving insert in the Heliface series, designed for external grooving and parting operations on CNC lathes and turning centers. It carries the HFPR insert style designation with a size code of 6030, delivering a 6 mm cutting width and a maximum depth of cut of 3 mm. The IC8250 manufacturer grade features a CVD-applied Al2O3 coating that provides thermal resistance and wear protection during continuous and interrupted cuts. A positive rake angle of 7 degrees and full-radius corner geometry support smooth chip flow and reduced cutting forces. This insert is suited for machinists and toolroom operators working with demanding materials on precision turning equipment.

The 6200377 is engineered primarily for stainless steel and steel workpieces, covering ISO material groups M and P. Its double-end configuration allows both ends of the insert to be used before replacement, extending tool life per insert. The clamp-type holding method provides secure seating in compatible Heliface toolholders. Typical applications include grooving grooves, undercuts, and snap-ring slots on turned components in job shops, aerospace shops, and general manufacturing environments.

Key Features

• Solid carbide construction with CVD Al2O3 coating for extended wear life on steel and stainless steel
• 6 mm cutting width with a maximum depth of cut range of 3 mm to 4 mm
• Full radius corner geometry at 3 mm radius for smooth groove profiles
• Positive 7-degree rake angle reduces cutting forces and heat generation
• Double-end insert design maximizes the number of cuts per insert
• Compliant with ISO 13399 tooling data standards for digital integration

Compatibility

Designed for use with ISCAR Heliface series clamping toolholders that accept the HFPR 6030 insert style. Consult the ISCAR Heliface toolholder catalog to confirm correct holder compatibility before installation.

Installation Notes

Insert installation should be performed by a qualified machinist or toolroom technician with the machine spindle fully stopped and all energy sources locked out per LOTO procedures. Use the appropriate ISCAR clamping screw and torx key specified for the Heliface holder to seat the insert securely without over-torquing the clamp. Inspect the insert pocket and clamp for wear or debris before seating a new insert. Do not exceed the maximum depth of cut rating for the insert size in use.
