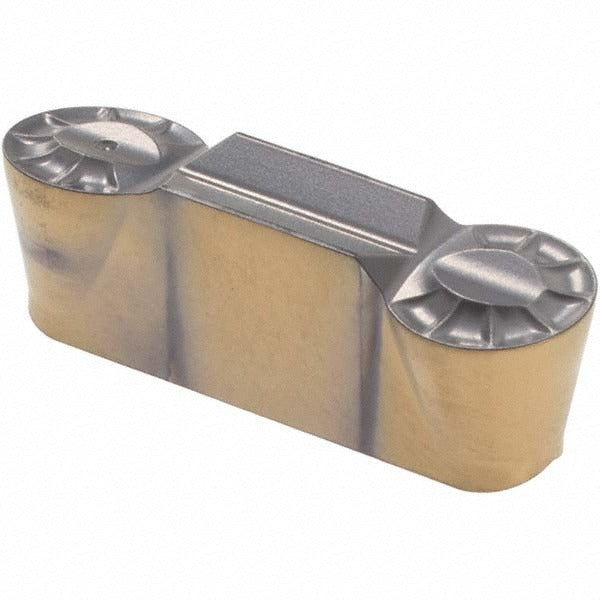

Iscar 6200332 GRIP6030Y IC808 Grooving Insert 6mm

Product Description

The ISCAR 6200332 is a solid carbide grooving insert in the Heli-Grip series, designed for precision grooving and parting operations on CNC lathes and turning centers. Carrying the GRIP6030Y geometry and IC808 grade, this insert features a 6 mm cutting width and a maximum depth of cut of 3 mm. The IC808 substrate is coated via PVD with an AlTiN, TiAlN, and TiN multilayer finish, providing thermal resistance and extended tool life across a wide range of workpiece materials. The double-ended design allows two cutting edges per insert, improving cost efficiency in high-cycle production environments. Installation is handled by machinists and CNC operators in metalworking shops.

This insert is suited for external and internal grooving, face grooving, and parting applications in both roughing and finishing passes. The Heli-Grip series targets universal material groups including steels, stainless steels, cast irons, high-temperature alloys, and non-ferrous materials, corresponding to ISO material codes P, M, K, S, and H. The positive rake angle of 7 degrees and Y-style chip breaker support controlled chip evacuation during groove profiling operations.

Key Features

• IC808 PVD-coated grade with AlTiN, TiAlN, and TiN multilayer finish for thermal and wear resistance
• 6 mm cutting width with a full corner radius of 3 mm for consistent groove geometry
• Double-ended insert design provides two usable cutting edges per unit
• Positive 7-degree rake angle and Y chip breaker promote clean chip formation and evacuation
• Clamp-style insert holding method for secure seating in compatible Heli-Grip toolholders
• Conforms to ISO 13399 standard for tooling data representation

Compatibility

Designed for use with ISCAR Heli-Grip series toolholders accepting GRIP6030 size inserts. Verify toolholder seat dimensions and clamping configuration before installation. Specific compatible holder part numbers were not provided in the product data.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator with the machine powered down and the spindle fully stopped before changing inserts. Use the appropriate torx or hex key to seat and torque the clamping screw per the toolholder manufacturer specifications. Inspect the insert pocket and clamp for wear or debris before seating the new insert. Never exceed the rated maximum depth of cut for the insert grade and geometry.
