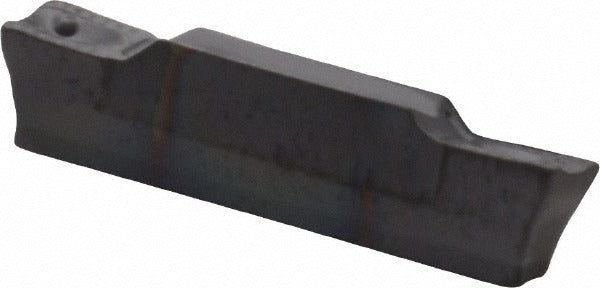

Iscar 6200235 Grooving Insert HGPL3003 IC908 Tialn

Product Description

The ISCAR 6200235 is a solid carbide grooving insert designed for precision grooving and parting operations on CNC lathes and turning centers. Built to the HGPL insert style in the IC908 manufacturer grade, it features a PVD-applied TiAlN coating for extended tool life across a broad range of workpiece materials. The insert is left-hand oriented, with a 3.00 mm cutting width and a maximum depth of cut of 1.80 mm. Its submicron carbide substrate and positive rake angle of 7 degrees support clean chip evacuation and reduced cutting forces in demanding turning applications. Installation is performed by a machinist or toolroom technician using a clamp-style insert holding method.

This insert belongs to the ISCAR Heliface series and is suited for grooving applications in both production and job-shop turning environments. The double-end configuration extends usable insert life. The IC908 grade with TiAlN finish is rated for universal workpiece material compatibility, covering ISO material groups H, K, M, P, and S, making it appropriate for steel, stainless, cast iron, high-temperature alloys, and non-ferrous metals. It is sold individually but carries a minimum order quantity of 10 units.

Key Features

• IC908 grade PVD TiAlN coating for wear resistance across universal workpiece materials
• 3.00 mm cutting width with a maximum depth of cut of 1.80 mm
• Positive rake angle of 7 degrees for reduced cutting forces and clean chip flow
• Double-end insert design for extended usable tool life per insert
• Clamp-style insert holding method for secure, repeatable seating
• Corner radius of 0.30 mm for controlled groove geometry
• Compliant with ISO 13399 tooling data standards

Compatibility

Designed for use in ISCAR Heliface series grooving toolholders that accept HGPL-style inserts with a 3003 insert size code. Consult the ISCAR toolholder catalog to confirm pocket compatibility before ordering.

Installation Notes

Insert replacement should be performed by a qualified machinist with the machine powered down and the spindle fully stopped. Use the appropriate torque wrench and clamp screw specified by the toolholder manufacturer to seat the insert securely without over-torquing. Inspect the insert pocket and clamp for wear or debris before seating a new insert. Follow applicable shop safety procedures and machine manufacturer guidelines during tooling changes.
