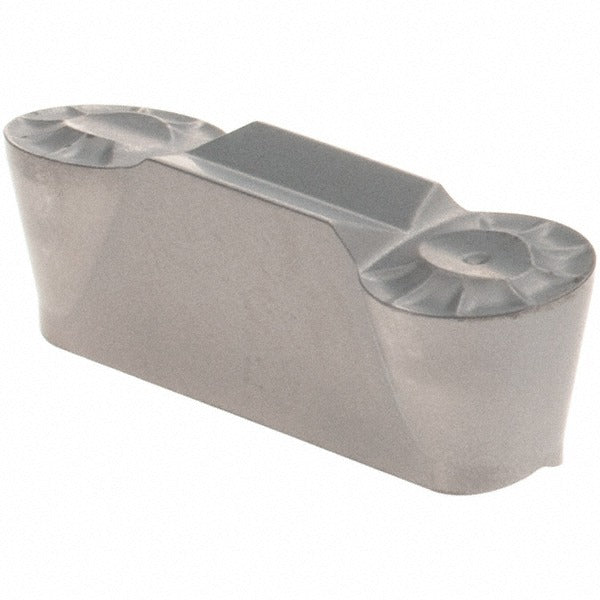

Iscar 6200154 Grooving Insert GRIP6030Y IC08 Solid Carbide

Product Description

The ISCAR 6200154 is a solid carbide grooving insert in the Heli-Grip series, designed for precision grooving and parting operations on CNC lathes and turning centers. It carries the GRIP6030Y insert style with an IC08 uncoated grade and delivers a 6 mm (0.2362 inches) cutting width with a maximum depth of cut of 3 mm (0.1181 inches). The double-ended, neutral-hand geometry and 7-degree positive rake angle reduce cutting forces and improve chip flow on non-ferrous workpiece materials. A full corner radius of 3 mm (0.1180 inches) supports smooth, consistent groove profiles.

This insert is suited for grooving and parting applications on non-ferrous metals, including aluminum, copper, and brass alloys, on production turning equipment. The Heli-Grip series is a common platform in high-volume shop environments where insert change-out speed and consistent tool life are priorities. The double-ended design allows two cutting edges per insert, reducing per-edge tooling cost in repetitive grooving cycles. It is typically installed by machinists and CNC operators in job shops and production machine shops.

Key Features

• Solid carbide IC08 uncoated grade optimized for non-ferrous metal cutting
• 6 mm cutting width (0.2362 inches) with full 3 mm corner radius for clean groove profiles
• Double-ended insert provides two usable cutting edges per piece
• 7-degree positive rake angle reduces cutting forces and improves chip evacuation
• Y chip breaker geometry for controlled chip formation
• Neutral hand orientation fits both left- and right-hand toolholders in the Heli-Grip system

Compatibility

Designed as an OEM-style replacement grooving insert for Heli-Grip series toolholders accepting the GRIP6030Y insert style. Verify toolholder pocket specifications before ordering.

Installation Notes

Insert seating and clamping should be performed with the machine fully stopped and all motion locked out per shop lockout-tagout procedures. Use the toolholder manufacturer-specified clamping screw and torque method to avoid insert movement during cutting. Inspect the pocket and clamping surfaces for chips or debris before seating a new insert. Replacement of worn or chipped inserts should be done before re-entering a cut to prevent workpiece damage or toolholder pocket wear.
