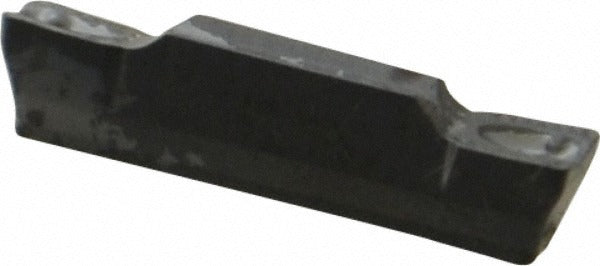

Iscar 6200100 GRIP3003Y IC354 Grooving Insert 3mm

Product Description

The ISCAR 6200100 is a solid carbide grooving insert in the Heli-Grip series, designed for external and face grooving operations on CNC lathes and turning centers. Identified by insert style GRIP and size code 3003Y, this insert features a 3.00 mm cutting width and a maximum depth of cut of 1.80 mm. The TiCN coating is applied via a PVD process, providing a hard, wear-resistant surface suited for cutting stainless steel and steel workpieces. With a positive rake angle of 7 degrees and a double-ended design, this insert delivers clean chip control and extended tool life in demanding turning applications.

This insert is intended for use in Heli-Grip toolholders compatible with GRIP-style inserts. It is well-suited for grooving and parting operations on stainless steel and steel components in both production and job-shop environments. The neutral hand orientation makes it adaptable to a range of toolholder setups. Machinists and CNC operators working to ISO 13399 tooling standards will find this insert meets those requirements directly. It is sold individually but carries a minimum order quantity of 10 units.

Key Features

• Solid carbide construction with PVD-applied TiCN coating for wear resistance
• 3.00 mm cutting width with a maximum depth of cut of 1.80 mm
• Positive rake angle of 7 degrees for reduced cutting forces
• Double-ended insert geometry for extended usable life per insert
• Y-style chip breaker for consistent chip control
• Compliant with ISO 13399 tooling data standards

Compatibility

Designed for use in ISCAR Heli-Grip series toolholders that accept GRIP3003-style inserts. Primary workpiece materials are stainless steel (ISO material code M) and steel (ISO material code P), with material grades C5 and C6.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and the toolholder is secured before seating or removing the insert. Use the appropriate torx or clamping key for the Heli-Grip toolholder to achieve proper insert clamping force. Verify insert seating and clamping before resuming cutting operations.
