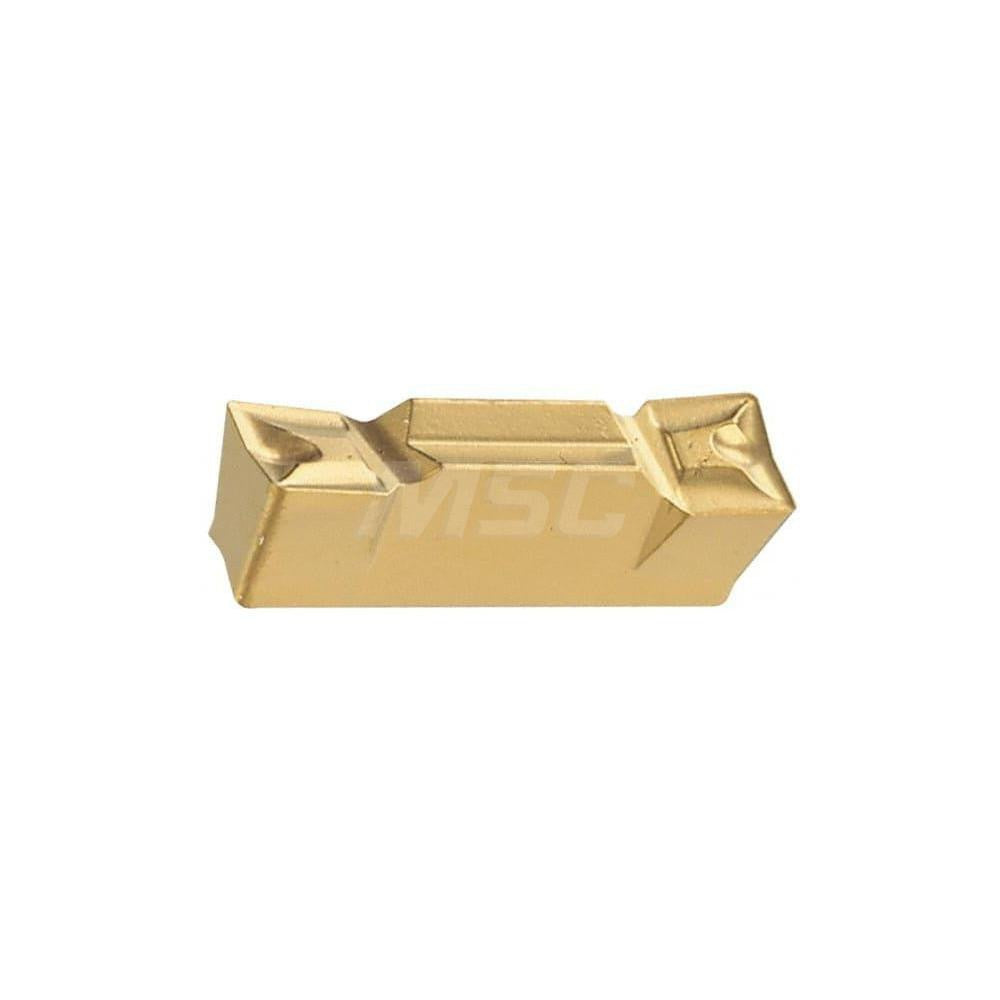

Iscar 6200079 Grooving Insert HFPL5004 IC354 Ticn

Product Description

The ISCAR 6200079 is a solid carbide grooving insert from the Heliface series, designed for precision grooving operations on CNC lathes and turning centers. Designated as style HFPL with size code 5004, this left-hand insert delivers a 5.00 mm cutting width and a maximum depth of cut of 2.50 mm. The insert carries an IC354 grade with a PVD-applied TiCN coating, which provides wear resistance and edge integrity when machining stainless steel and steel workpieces. It is double-ended, offering two usable cutting edges per insert. Machinists and toolroom technicians working with turning applications will find this insert suited for groove profiling where dimensional accuracy and finish quality are priorities.

This insert is intended for use in Heliface series grooving toolholders and is primarily applied in grooving and parting operations on stainless steel and steel materials, corresponding to ISO material codes M and P. Typical installations include horizontal and vertical CNC turning centers in both job shop and production environments. The positive rake angle of 7.00 degrees aids chip control and reduces cutting forces during groove entry. The 0.40 mm corner radius contributes to edge stability on narrow groove profiles. This is a single-package quantity insert, sold individually, with a minimum order quantity of 10 units.

Key Features

• Solid carbide substrate with PVD TiCN coating for extended tool life on steel and stainless steel
• Left-hand cutting orientation with HFPL insert style, size code 5004
• 5.00 mm cutting width with a maximum depth of cut of 2.50 mm
• Positive rake angle of 7.00 degrees for reduced cutting forces and improved chip flow
• Double-ended insert provides two cutting edges per insert
• 0.40 mm corner radius for stable groove profiles and edge strength
• Compliant with ISO 13399 tooling data standards

Compatibility

Designed for use in ISCAR Heliface series grooving toolholders that accept HFPL-style inserts with size code 5004. Optimized for machining stainless steel and steel workpieces classified under ISO material codes M and P. No additional compatible model numbers were specified in the available product data.

Installation Notes

Installation and indexing of this insert should be performed by a qualified machinist or toolroom technician with the machine spindle fully stopped and locked out. Follow the toolholder manufacturer's clamping torque specifications as documented in the toolholder documentation. Ensure the insert seat and clamping components are clean and free of chips before seating the insert. Verify cutting direction and toolholder hand orientation match the left-hand designation of this insert before beginning a cut.
