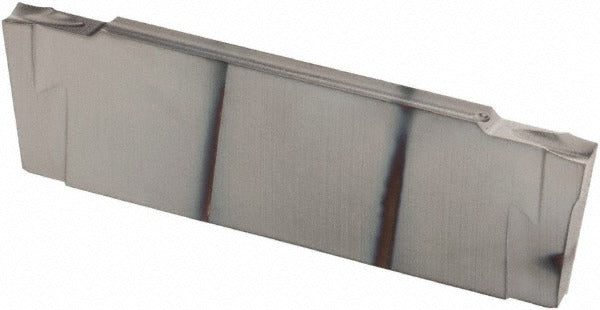

Iscar 6099629 DGR1500J-8D Carbide Cutoff Insert 1.5mm

Product Description

The ISCAR 6099629 is a solid carbide cutoff and parting insert in the Do-Grip series, manufactured to the DGR1500J-8D geometry designation with an IC308 grade coating. The insert features a 1.5 mm (0.0591 inch) cutting width and an 8-degree right-hand lead angle with a 7-degree relief angle. The PVD-coated IC308 grade is engineered for cutting performance in superalloy and hard-to-machine workpiece materials. The J chipbreaker geometry supports controlled chip formation during parting operations. This insert is a double-ended design, held in place by a clamp-style toolholder, making it a standard component for CNC parting and grooving applications handled by machinists and toolroom technicians.

This insert is intended for parting and cutoff operations on CNC lathes and turning centers. Its primary workpiece material designation covers superalloys and related difficult-to-cut materials, aligning with ISO material codes M, P, and S. The Do-Grip series is a well-established ISCAR platform for grooving and parting work across light and medium-duty turning applications. The 18 mm (0.7087 inch) maximum depth of cut supports a wide range of bar stock diameters commonly encountered in production turning environments.

Key Features

• 1.5 mm (0.0591 inch) cutting width for precise parting and grooving
• IC308 PVD-coated solid carbide grade suited for superalloy workpieces
• 8-degree right-hand lead angle with 7-degree relief angle for controlled cutting geometry
• J chipbreaker for reliable chip evacuation during parting operations
• Double-ended insert design extends usable tool life per insert
• Maximum depth of cut 18 mm (0.7087 inch) for versatile bar and tube parting
• Compliant with ISO 13399 insert identification standards

Compatibility

Designed for use with ISCAR Do-Grip series clamp-style toolholders accepting the DGR 1500 insert size. Verify toolholder compatibility with the DGR1500J-8D insert style before ordering.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Power down and lock out the machine before seating or replacing the insert in the toolholder. Ensure the clamping mechanism is fully engaged and the insert is properly seated against the pocket locating surfaces before resuming cuts. Do not exceed the rated maximum depth of cut for this insert size.
