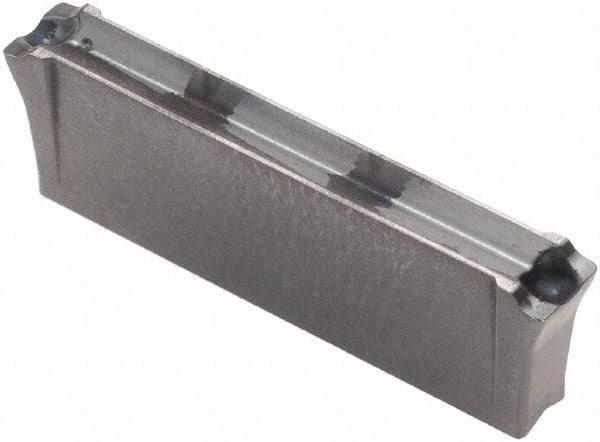

Iscar 6098190 Dgn 3003UT IC908 Carbide Cutoff Insert 3mm

Product Description

The ISCAR 6098190 is a double-ended solid carbide cutoff and grooving insert designed for precision parting and grooving operations on CNC lathes and turning centers. It carries the DGN 3003UT geometry with an IC908 PVD-coated carbide grade, delivering a 3.00 mm cutting width and a neutral lead angle for straight, balanced cuts. The UT chipbreaker geometry helps control chip flow across a broad range of workpiece materials. At 0.8071 inches overall length and 0.0098 inch corner radius, this insert is built for consistent performance in high-production turning environments. Licensed machinists and CNC operators are the primary installers of this tooling.

This insert is suited for grooving and parting applications on a universal range of workpiece materials, including steels, stainless steels, cast irons, non-ferrous metals, and high-temperature alloys, as indicated by the material codes H, K, M, P, and S. It belongs to the ISCAR Do-Grip series and supports maximum depth of cut up to 18.00 mm (0.7087 inches), making it applicable to both light finishing and moderate stock-removal grooving passes on shaft and tubular workpieces in job shop and production environments.

Key Features

• IC908 PVD-coated carbide grade for extended tool life across universal workpiece materials
• 3.00 mm cutting width with neutral lead angle for balanced radial cutting forces
• UT chipbreaker promotes reliable chip control during grooving and parting
• Double-ended insert design provides two usable cutting edges per insert
• Maximum depth of cut of 18.00 mm suits a wide range of groove depths
• Compliant with ISO 13399 tooling data standards for CAM and tool management integration

Compatibility

Designed as a replacement-style insert for ISCAR Do-Grip series grooving and parting toolholders that accept the DGN 3003 insert style. Confirm toolholder pocket specifications before installation.

Installation Notes

Insert seating and clamping should be performed by a qualified machinist following the toolholder manufacturer's clamping procedure. Ensure the machine spindle is fully stopped and the machine is in a safe, locked-out state before changing inserts. Use the correct insert key or torx driver specified by the toolholder to avoid seat damage. Verify insert orientation and edge condition before resuming cutting operations.
