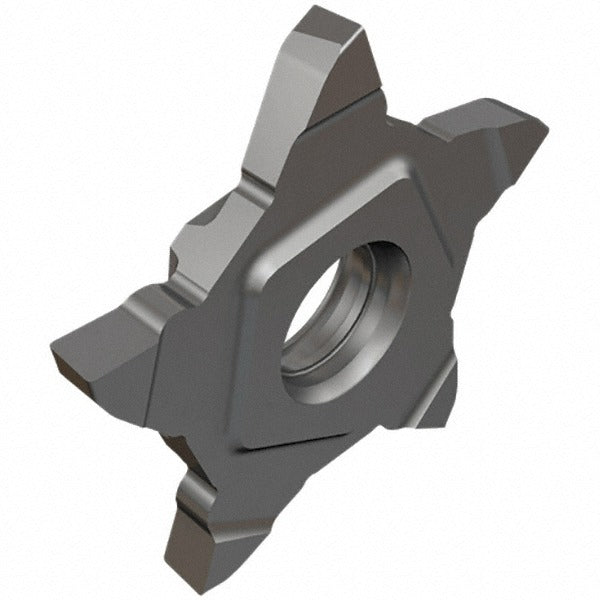

Iscar 6097584 Cutoff Insert 2mm Pentacut Grooving Parting

Product Description

The ISCAR 6097584 is a solid carbide cutoff and grooving insert in the PentaCut series, designed for screw-held toolholders used in turning and parting operations. The insert carries the IC908 manufacturer grade with a PVD coating applied over a submicron carbide substrate, delivering wear resistance across a broad range of workpiece materials. Cutting width is 2.00 mm (0.0787 inches) with a corner radius of 0.20 mm (0.0080 inches). The neutral lead angle and right-hand orientation make this insert suitable for straight face grooving and cutoff work on CNC lathes and turning centers. It is installed by machining professionals and toolroom technicians.

This insert is rated for universal primary workpiece material application, covering ISO material groups H, K, M, P, and S. That range includes hardened steels, cast irons, stainless steels, carbon and alloy steels, and heat-resistant superalloys. The NF chipbreaker geometry supports grooving and parting operations where chip control is critical to tool life and surface finish. Maximum depth of cut is 3.00 mm (0.1180 inches). The PentaCut series is designed for demanding production environments where consistent insert indexing and secure screw clamping are required.

Key Features

• IC908 grade with PVD coating over submicron carbide substrate for broad material compatibility
• 2.00 mm cutting width with 0.20 mm corner radius for precise groove geometry
• Neutral lead angle, right-hand insert orientation
• NF chipbreaker for controlled chip evacuation during grooving and parting
• Screw-held insert holding method for secure, repeatable indexing
• Maximum depth of cut: 3.00 mm (0.1180 inches)
• Conforms to ISO 13399 tooling data standards

Compatibility

Designed for use with PentaCut series screw-clamp toolholders accepting PENTA 24N200 insert size. Compatible with ISO material groups H, K, M, P, and S workpiece materials as identified by the manufacturer.

Installation Notes

Insert replacement should be performed with the machine fully powered down and the spindle locked. Use the manufacturer-specified torx or hex key at the correct drive to seat the screw clamp without stripping the insert pocket. Inspect the toolholder pocket and clamping screw for wear or contamination before seating a new insert. Trained machinists or toolroom technicians should handle insert indexing to ensure proper seating and safe operation.
