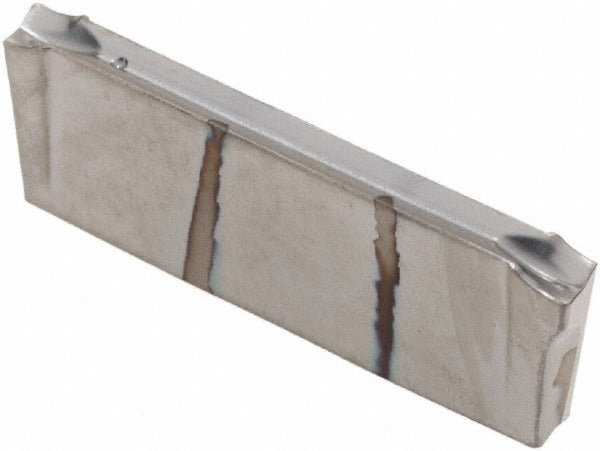

Iscar 6097025 Cutoff Insert 2.2mm Do-grip Carbide IC328

Product Description

The ISCAR 6097025 is a solid carbide double-ended cutoff and parting insert designed for precision grooving and parting operations on CNC lathes and turning centers. Built to Do-Grip series toolholder standards, this insert features a 2.2 mm cutting width (0.0866 inches), a 15-degree right-hand lead angle, and a 7-degree relief angle. The IC328 grade uses a PVD coating process for enhanced edge integrity at elevated cutting temperatures. A 0.20 mm corner radius (0.0079 inches) helps control chip formation during tight-tolerance cutoff work. Licensed machinists and CNC operators install this insert in compatible Do-Grip toolholders.

This insert is rated for parting and grooving of superalloys and a range of metallic workpiece materials. It is classified under material grade C2, C3, C5, and C6, making it suited for both ferrous and non-ferrous stock. The J chipbreaker geometry is optimized for chip evacuation during deep cutoff passes. Maximum depth of cut is 18.00 mm (0.7087 inches). The double-ended design extends usable tool life by providing two cutting edges per insert. Typical applications include production turning on CNC equipment in aerospace, oil and gas, and precision machining environments where superalloy cutting performance is critical.

Key Features

• 2.2 mm cutting width (0.0866 inches) for accurate parting and grooving
• IC328 PVD-coated solid carbide grade optimized for superalloy workpieces
• 15-degree right-hand lead angle with 7-degree relief angle for controlled chip flow
• Double-ended insert design for two usable cutting edges per piece
• J chipbreaker geometry supports efficient chip evacuation at depth
• Maximum depth of cut: 18.00 mm (0.7087 inches)

Compatibility

Designed for use with ISCAR Do-Grip series toolholders that accept DGR 2202 style inserts. Verify toolholder insert pocket specifications before installation.

Installation Notes

Insert replacement should be performed by a qualified CNC machinist or tooling technician with the machine in a full stop and locked-out state per applicable machine safety procedures. Use the correct torque wrench and insert key specified by the toolholder manufacturer to seat the insert without cracking the carbide substrate. Do not strike or force the insert into the pocket. Inspect the insert pocket and clamping screw for wear or debris before seating a new insert.
