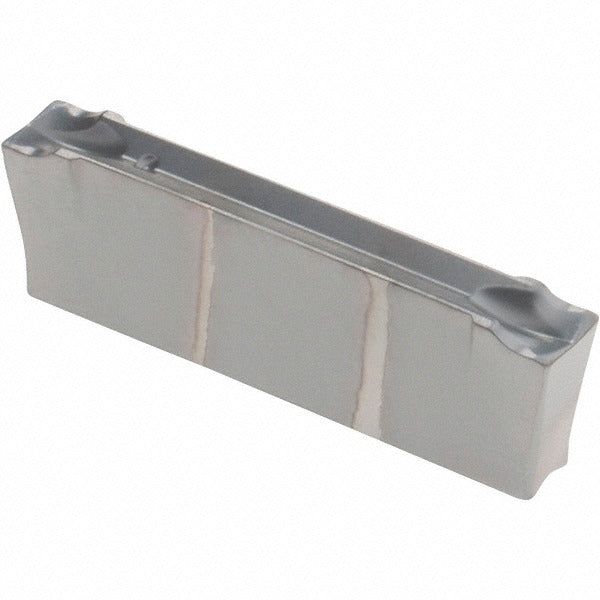

Iscar 6096877 DGN3102JT IC907 Carbide Cutoff Insert 3.1mm

Product Description

The ISCAR 6096877 is a solid carbide cutoff and grooving insert designed for precision parting and grooving operations on CNC lathes and turning centers. It carries the DGN3102JT geometry with a manufacturer grade of IC907, a PVD-coated submicron carbide substrate engineered for extended tool life across a broad range of workpiece materials. The cutting width measures 3.1 mm (0.122 inches), with a neutral lead angle and neutral hand orientation. A corner radius of 0.20 mm (0.008 inches) provides edge stability during interrupted cuts. The JT chipbreaker geometry promotes controlled chip evacuation in both grooving and parting applications.

This insert is suited for grooving and parting operations in general machining environments handling ferrous and non-ferrous materials, hardened steels, cast irons, stainless steels, superalloys, and non-metallic workpieces. The IC907 grade with PVD coating performs reliably across the ISO material groups H, K, M, N, P, and S, making it a versatile choice for shops running mixed-material production. It fits within the Do-Grip series tool system and seats via clamp-style insert holding. Maximum depth of cut reaches 18.00 mm (0.709 inches), accommodating most standard parting and grooving tasks on medium to large diameter stock.

Key Features

• DGN3102JT geometry with JT chipbreaker for controlled chip flow in grooving and parting
• IC907 PVD-coated submicron carbide grade compatible with ISO H, K, M, N, P, and S material groups
• Neutral lead angle and neutral hand for flexible setup in left- or right-hand configurations
• Double-ended insert design extends usable tool life per unit
• 3.1 mm (0.122 inch) cutting width with 0.20 mm corner radius for clean groove geometry
• Maximum depth of cut of 18.00 mm (0.709 inches) suitable for medium to large diameter parting

Compatibility

Designed for use with Do-Grip series clamp-style toolholders that accept DGN-style inserts. Confirm toolholder seat dimensions and clamping system compatibility before installation. No specific machine model compatibility data was provided by the manufacturer for this listing.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician with the machine powered down, spindle locked, and all stored energy released before insert exchange. Seat the insert fully into the toolholder pocket and verify the clamp engages cleanly without rocking. Inspect the insert seat and clamping screw for wear or debris before seating a new insert. Follow the toolholder manufacturer torque and clamping specifications for the specific Do-Grip holder in use.
