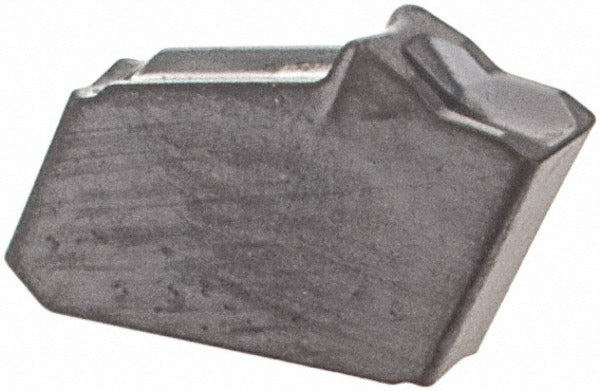

Iscar 6096570 Grooving Insert GFN16 IC908 Solid Carbide

Product Description

The ISCAR 6096570 is a solid carbide grooving insert designed for precision grooving operations on CNC lathes and turning centers. Part of the Self-Grip series, this insert features a GFN16 insert style with a cutting width of 0.063 inches (1.60 mm) and a corner radius of 0.0063 inches (0.16 mm). The IC908 grade carbide substrate is coated with TiAlN via a PVD process, providing wear resistance across a broad range of workpiece materials. The neutral hand orientation and positive rake angle of 7 degrees make it suitable for standard grooving and parting applications. Machinists and CNC operators in production and job-shop environments install and index these inserts as part of routine tooling maintenance.

This insert is rated for universal primary workpiece material compatibility, covering ISO material groups H, K, M, P, and S. That range includes hardened steels, cast irons, stainless steels, carbon steels, and heat-resistant superalloys. It is a single-end insert, meaning each insert provides one cutting edge before replacement. Typical applications include external grooving, parting off, and shallow profiling on turned components where tight groove width tolerances are required. The Self-Grip series toolholder system provides secure clamping without additional fasteners, which reduces setup time in high-volume turning operations.

Key Features

• IC908 grade solid carbide substrate with PVD-applied TiAlN coating for extended tool life
• 0.063 inch (1.60 mm) cutting width for precise, repeatable groove dimensions
• Positive rake angle of 7 degrees reduces cutting forces and supports clean chip evacuation
• Compatible with ISO material groups H, K, M, P, and S for broad workpiece applicability
• Self-Grip series design allows secure, tool-free clamping in compatible toolholders
• Conforms to ISO 13399 standard for tooling data representation

Compatibility

Designed for use with ISCAR Self-Grip series toolholders that accept GFN16 style inserts. Verify toolholder insert seat size and style code before installation. No specific machine or toolholder model numbers were provided by the manufacturer for this listing.

Installation Notes

Installation and indexing of grooving inserts should be performed by a qualified machinist or CNC tooling technician. Always bring the machine spindle to a full stop and engage the machine lock before changing or indexing any insert. Handle carbide inserts with care to avoid chipping the cutting edge; use insert handling tools or gloves where appropriate. Confirm that the insert is fully seated in the toolholder pocket and that the clamping mechanism is engaged before resuming cutting operations.
