Iscar 6096565 Cutoff Insert Dgl 3102J-15D IC328 Carbide

Product Description

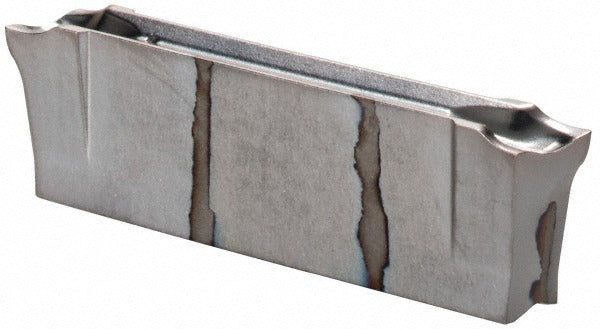

The ISCAR 6096565 is a solid carbide double-end cutoff and parting insert from the Do-Grip series, designed for precision grooving and parting operations on CNC lathes and turning centers. It carries the IC328 manufacturer grade with a PVD coating and features a 3.1 mm cutting width (0.1220 inches) with a left-hand lead angle of 15 degrees. The relief angle is 7 degrees and the corner radius is 0.20 mm (0.0079 inches). The J chipbreaker geometry is suited to controlled chip formation in demanding cuts. This insert is installed by machinists and CNC operators working in precision metalworking and aerospace-adjacent applications.

This insert is primarily intended for parting and grooving of superalloy workpiece materials, consistent with its IC328 grade and PVD coating selection. The Do-Grip series is engineered for secure clamping in compatible Do-Grip blade and holder systems. Its double-end design allows for two cutting edges per insert, extending tool life in production environments. Maximum depth of cut is 18.00 mm (0.7087 inches), making it suitable for moderate-diameter bar stock and tubing parting applications on standard production turning equipment.

Key Features

• IC328 PVD-coated solid carbide grade optimized for superalloy workpiece materials
• 3.1 mm cutting width with left-hand 15-degree lead angle for directed chip flow
• Double-end insert design provides two usable cutting edges per insert
• J chipbreaker geometry promotes chip control during parting operations
• Maximum depth of cut of 18.00 mm supports moderate bar stock diameters
• Conforms to ISO 13399 tooling data standards for CAM and tool management integration

Compatibility

Designed for use in ISCAR Do-Grip series blade holders and grooving systems that accept DGL-style inserts with a 3102 insert size code. Confirm holder compatibility with the DGL insert style and left-hand orientation before installation.

Installation Notes

This insert is installed by qualified machinists or CNC tooling technicians. Power down and lock out the machine spindle before changing inserts. Use appropriate insert seating tools and torque to holder manufacturer specifications for the Do-Grip clamping system. Inspect the insert pocket and clamping screw for wear before seating a new insert to ensure proper clamping force and edge positioning.
