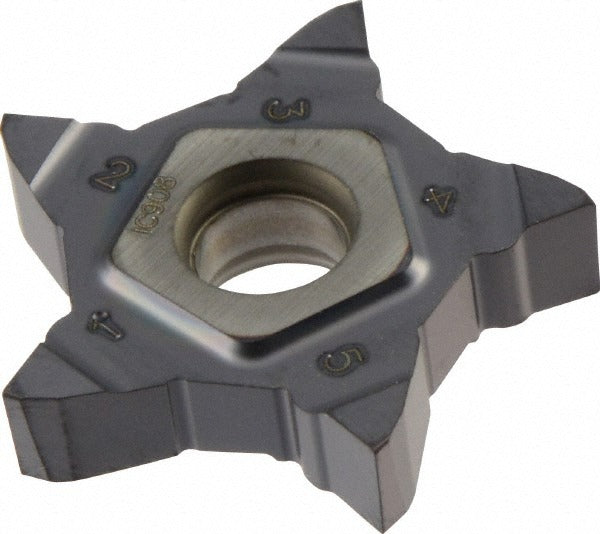

Iscar 6095023 Pentacut Cutoff Insert 4.8 Mm Carbide

Product Description

The ISCAR 6095023 is a solid carbide cutoff and grooving insert in the PentaCut series, designed for parting and grooving operations on CNC lathes and turning centers. It carries a 4.8 mm cutting width, a neutral lead angle, and a right-hand insert orientation. The IC908 carbide grade features a PVD coating for wear resistance across a broad range of workpiece materials. The NF chipbreaker geometry supports controlled chip flow during deep grooving passes. This insert is suited for machinists and toolroom technicians running production or job-shop turning operations where consistent parting and groove width are required.

The ISCAR 6095023 fits grooving and parting applications in both production and job-shop turning environments. It is rated for use on universal workpiece materials, covering ISO material groups H, K, M, P, and S, which includes steel, stainless, cast iron, non-ferrous alloys, and high-temp alloys. The PentaCut insert style with size code 24N480 accommodates a maximum depth of cut of 6.5 mm, making it appropriate for moderate-depth parting operations on small to mid-range turned diameters.

Key Features

• 4.8 mm cutting width with a 0.20 mm corner radius for clean groove geometry
• IC908 carbide grade with PVD coating for extended tool life across multiple material groups
• Neutral lead angle, right-hand orientation for standard parting setups
• NF chipbreaker geometry for controlled chip evacuation in grooving cuts
• Maximum depth of cut of 6.5 mm for moderate parting and grooving applications
• Multi-use tool designation supports both grooving and parting operations in a single insert style

Compatibility

Designed for use with ISCAR PentaCut series toolholders and insert seats accepting the PENTA24N insert style. Verify toolholder seat geometry and clamping system before installation.

Installation Notes

Insert seating and clamping should be performed by a qualified machinist following the toolholder manufacturer's torque and clamping instructions. Ensure the machine spindle is fully stopped and the turret is indexed away from the work zone before changing inserts. Inspect the insert pocket and clamping screw for wear or debris before seating a new insert. Never exceed the maximum depth of cut specification for the insert grade and toolholder combination in use.
