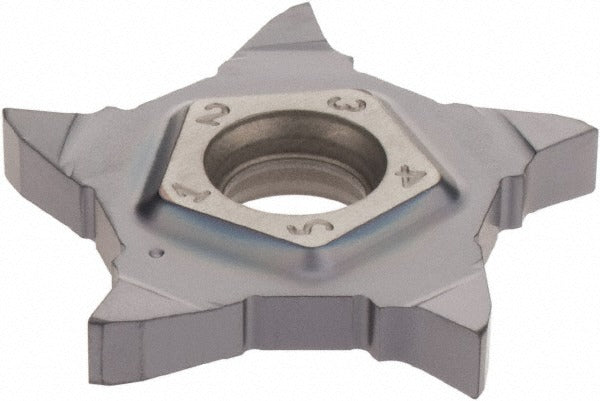

Iscar 6093335 Cutoff Insert PENTA24N300PF020 IC908 Carbide

Product Description

The ISCAR 6093335 is a solid carbide cutoff and grooving insert using the PENTA24N300PF020 geometry in the IC908 manufacturer grade. It features a 3 mm (0.118 inch) cutting width, a 0-degree neutral lead angle, and a PF chipbreaker profile designed to manage chip flow in demanding parting and grooving operations. The insert is held in place by a screw-clamp method and carries a PVD coating applied over a submicron solid carbide substrate. A 0.20 mm corner radius and a 7-degree relief angle round out the key cutting geometry. This insert is installed and replaced by machinists and CNC tooling technicians on lathes and turning centers.

This insert is suited for grooving and parting applications across a wide range of workpiece materials, including steels, stainless steels, cast irons, high-temperature alloys, and non-ferrous materials, as indicated by the primary workpiece material codes H, K, M, P, and S. It fits into the PentaCut insert series toolholders and is appropriate for both production turning centers and manual lathes where controlled chip formation and consistent groove width are required. Maximum depth of cut is 6.50 mm (0.256 inch), making it suitable for moderate-diameter parting and profiling work.

Key Features

• Solid carbide construction with PVD coating over a submicron substrate for extended tool life
• 3 mm cutting width (0.118 inch) with 0.20 mm corner radius for precise groove geometry
• IC908 grade with universal material compatibility across H, K, M, P, and S ISO material groups
• PF chipbreaker profile promotes controlled chip evacuation in grooving and parting cuts
• Neutral lead angle and neutral hand orientation for flexible toolholder mounting
• Screw-clamp insert holding method provides secure seating under interrupted or continuous cuts
• Maximum depth of cut of 6.50 mm (0.256 inch) supports a range of parting and grooving applications

Compatibility

Designed for use with PentaCut series screw-clamp toolholders that accept the PENTA 24N insert size. Compatible with workpiece material ISO codes H, K, M, P, and S per ISO 13399. Verify toolholder bore and clamping slot dimensions before installation.

Installation Notes

Insert replacement should be performed by a qualified machinist or CNC tooling technician with the machine in a locked-out, de-energized state. Use the correct torx or hex key specified by the toolholder manufacturer to achieve proper screw-clamp torque without overtightening. Inspect the insert pocket and clamping screw for wear or debris before seating the new insert. Confirm cutting parameters against the IC908 grade recommendations in the ISCAR catalog before resuming production.
