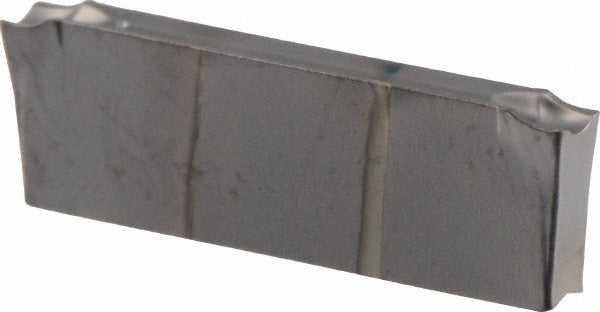

Iscar 6093189 Dgn 2202UT IC908 Cutoff Insert 2.2mm

Product Description

The ISCAR 6093189 is a solid carbide double-ended cutoff and grooving insert designed for precision parting and grooving operations on CNC lathes and turning centers. Manufactured to the Do-Grip series standard, it features a 2.2 mm cutting width (0.0866 inches) and a neutral lead angle for balanced cutting forces. The IC908 grade substrate is PVD-coated, providing wear resistance across a broad range of workpiece materials. A 0.20 mm corner radius (0.0079 inches) helps control chip formation and surface finish. Licensed machinists and CNC operators install these inserts in compatible Do-Grip toolholders as part of standard insert replacement cycles.

This insert is rated for universal primary workpiece material compatibility, covering ISO material groups H, K, M, P, and S. Typical applications include grooving and parting on general-purpose turned components in production and job-shop environments. The double-end design allows the insert to be flipped and reused, extending service life per unit. Maximum depth of cut is 18.00 mm (0.7087 inches), making it suitable for moderate to deep parting passes on bar stock and tubular workpieces.

Key Features

• 2.2 mm cutting width with neutral lead angle for balanced cutting force
• IC908 PVD-coated solid carbide grade for extended tool life across multiple ISO material groups
• Double-end insert design allows flipping to use both cutting edges
• 0.20 mm corner radius for controlled chip formation and surface finish
• Maximum depth of cut of 18.00 mm suits moderate to deep parting operations
• Conforms to ISO 13399 tooling data standards for system integration

Compatibility

Designed for use in ISCAR Do-Grip series toolholders accepting DGN-style inserts with a 2202 size code. Refer to the Do-Grip system toolholder selection guide to confirm holder compatibility before installation.

Installation Notes

Insert replacement should be performed by a qualified machinist or CNC technician with the machine fully powered down and all motion stopped. Use the appropriate ISCAR insert-seating tool or torx key as specified by the toolholder manufacturer to secure the insert without over-torquing the clamping screw. Inspect the insert pocket for chips or debris before seating the new insert. Verify cutting edge orientation and depth-of-cut clearance before resuming operation.
