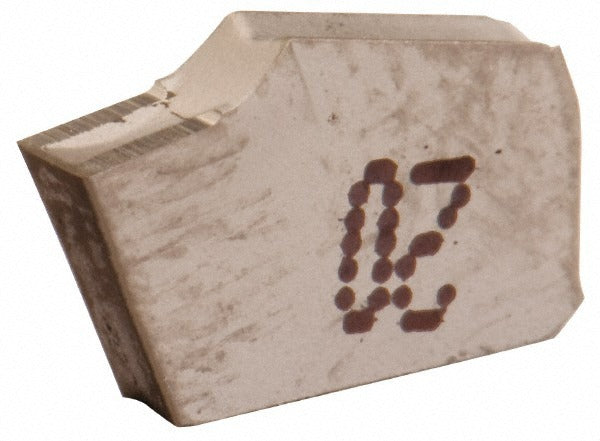

Iscar 6061117 Cutoff Insert 2.4mm Solid Carbide Right Hand

Product Description

The ISCAR 6061117 is a solid carbide cutoff insert designed for parting and grooving operations on CNC lathes and turning centers. It features a 2.4 mm (0.0945 inch) cutting width, an 8-degree right-hand lead angle, and a 7-degree relief angle. The insert is manufactured from solid carbide in the IC54 manufacturer grade and carries a C5 material grade rating. It is held in place using a clamp-style holding method and belongs to ISCAR's Self-Grip series. The bright, uncoated finish is suited for applications where coating is not required or where base carbide performance is preferred. Licensed machinists and CNC operators install this insert in compatible Self-Grip toolholders.

This cutoff insert is used in production turning environments for cut-off and parting applications. The right-hand lead angle and 8-degree geometry direct cutting forces in a controlled manner, making it appropriate for bar stock cutoff on horizontal lathes. The single-end design and 0.16 mm (0.0063 inch) corner radius are suited for general-purpose parting where tight tolerances on the finished face are required. It is intended for use in metalworking shops handling ferrous and non-ferrous bar stock.

Key Features

• 2.4 mm (0.0945 inch) cutting width for precise parting and cutoff
• Solid carbide construction with IC54 manufacturer grade and C5 material grade
• 8-degree right-hand lead angle for controlled chip direction
• 7-degree relief angle reduces rubbing and heat buildup at the cutting edge
• 0.16 mm corner radius for consistent edge geometry on parted faces
• Bright, uncoated finish suitable for dry or lubricated cutting conditions
• Single-end insert with clamp-style holding via Self-Grip series toolholders

Compatibility

Designed for use with ISCAR Self-Grip series clamping toolholders that accept GTR-style cutoff inserts with a 2.4 mm size code.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Power down and lock out the machine before seating or removing the insert. Use the appropriate torque wrench and clamp hardware specified for the Self-Grip toolholder to secure the insert without over-clamping. Inspect the insert seat and clamp pocket for chips or debris before installation to ensure proper seating and cutting geometry.
