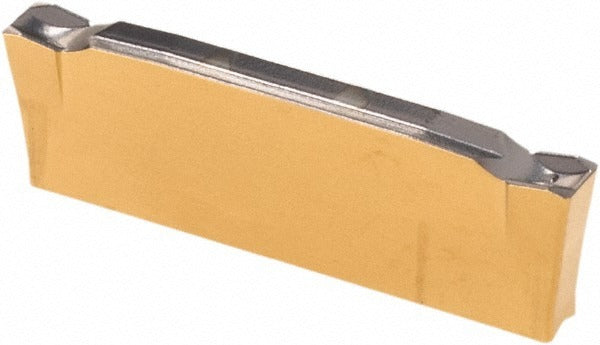

Iscar 6011377 Dgn 2202C IC808 Carbide Cutoff Insert 2.2mm

Product Description

The ISCAR 6011377 is a double-ended solid carbide cutoff and grooving insert from the Do-Grip series, designed for precision parting and grooving operations on CNC lathes and turning centers. It carries the IC808 manufacturer grade and features a PVD-applied multilayer coating of TiAlN, AlTiN, and TiN for extended wear resistance and thermal stability. The cutting width measures 2.2 mm (0.0866 inches), with a neutral lead angle and a corner radius of 0.20 mm (0.0079 inches). These dimensions make it well-suited for tight-tolerance groove profiles where consistent width and edge geometry are critical. Licensed machinists and CNC operators are the primary installers and end users of this insert.

This insert is classified for universal primary workpiece material compatibility, covering ISO material groups H, K, M, P, and S. That range includes steel, stainless steel, cast iron, non-ferrous alloys, and high-temperature superalloys. The DGN 2202C insert style fits standard Do-Grip toolholders designed for the 2202 size code. It is appropriate for both high-volume production turning environments and job-shop applications requiring reliable parting and grooving performance across varied material types.

Key Features

• Double-ended insert design extends usable tool life per unit
• IC808 grade with PVD multilayer TiAlN, AlTiN, and TiN coating for heat and wear resistance
• Neutral lead angle and neutral hand orientation for versatile setup
• 2.2 mm cutting width supports consistent groove geometry across universal workpiece materials
• Maximum depth of cut reaches 18.00 mm (0.7087 inches), accommodating a wide range of grooving depths
• Conforms to ISO 13399 tooling data standards for compatible CAM and tool management systems

Compatibility

Designed for use with Do-Grip series toolholders accepting the DGN 2202 insert size code. Compatible with ISO material groups H, K, M, P, and S as stated by the manufacturer. Verify toolholder seat geometry and clamping style against the DGN insert form before installation.

Installation Notes

Insert seating and replacement should be performed by a qualified machinist following the toolholder manufacturer's clamping torque and procedure guidelines. Power down and lock out the machine spindle before changing inserts. Inspect the toolholder pocket and clamping screw for wear or debris before seating a new insert. Do not use damaged or chipped inserts, as this can cause unpredictable tool failure and workpiece damage.
