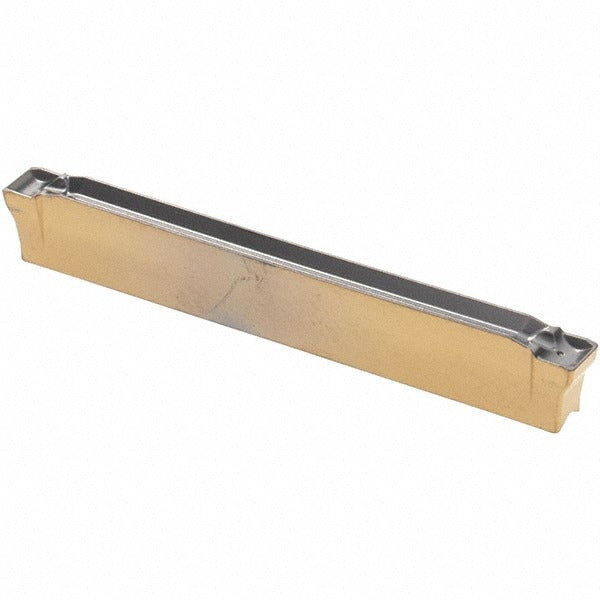

Iscar 6004919 DGN3002C-XL IC808 Carbide Cutoff Insert

Product Description

The ISCAR 6004919 is a solid carbide cutoff and grooving insert from the Do-Grip XL series, designed for precision parting and grooving operations on CNC lathes and turning centers. It carries the IC808 manufacturer grade with a PVD coating process, delivering consistent edge performance across a broad range of workpiece materials. The neutral lead angle and neutral hand orientation allow the insert to be used in standard straight-cut parting applications without directional bias. At 1.38 inches overall length, this DGN3002C-XL insert seats into compatible Do-Grip XL toolholders used throughout production and job-shop turning environments.

This insert is rated for universal primary workpiece material compatibility, covering material codes H, K, M, P, and S per ISO 13399 classification. That range spans hardened steels, cast irons, stainless steels, general steels, and heat-resistant superalloys, making it a practical single-grade option across mixed-material production runs. It is installed by machinists and CNC operators performing cutoff, parting, or external grooving work where consistent chip control and tool life are priorities. The C chipbreaker geometry supports chip evacuation in these narrow-groove applications.

Key Features

• IC808 grade with PVD coating for extended tool life across diverse materials
• Neutral lead angle and neutral hand for straightforward parting setups
• C chipbreaker geometry aids chip control in grooving and cutoff cuts
• 7-degree relief angle reduces rubbing and supports clean groove walls
• Conforms to ISO 13399 standards for insert geometry and identification
• Multi-use capable for both grooving and parting operations

Compatibility

Designed for use with ISCAR Do-Grip XL series toolholders that accept DGN3002C-XL insert geometry. Verify toolholder pocket specifications before installation.

Installation Notes

Carbide grooving inserts of this type are seated and secured by a qualified machinist or CNC operator following the toolholder manufacturer torque and clamping procedures. Power down and lock out the machine spindle before changing inserts. Handle carbide inserts carefully to avoid edge chipping prior to use. Confirm insert seating and clamping security before resuming cutting operations.
