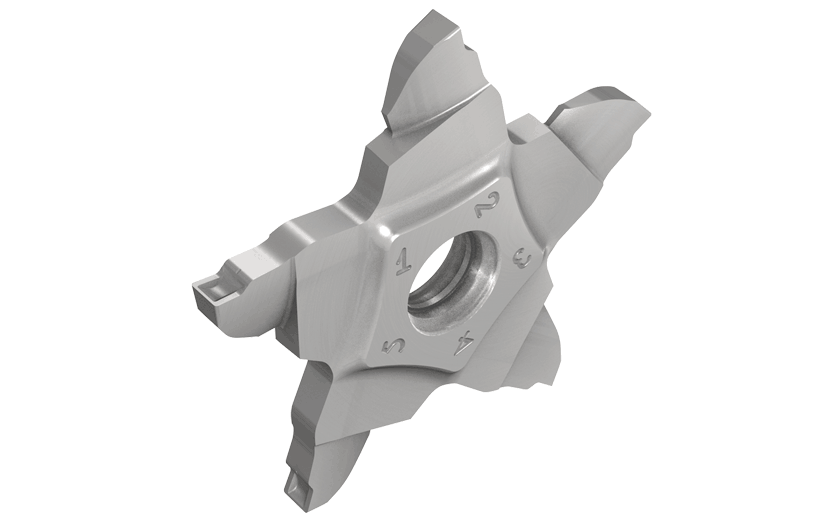

Iscar 6003656 Penta 34F239-0.15-22R IC908 Insert

Product Description

The Iscar Penta 34F239-0.15-22R IC908 insert is designed for face grooving applications. This insert is made of carbide material, offering strength and durability. With a maximum groove depth of 0.1970 inches, it is engineered to handle various cutting tasks efficiently.

• Insert Width: 0.0940 inches
• Insert Diameter: 1.34 inches
• Corner Radius: 0.0060 inches

Product Highlights

This insert is suitable for machining stainless steel, high-temperature alloys, hardened metals, and cast iron. It has a coating of TiAlN, which enhances its cutting performance.

Product Information

Standard Information

• Brand: Iscar
• Part Number: PENTA-34F239-0.15-22R-908

Technical Specifications

• Insert Width: 0.0940 inches
• Max Groove Depth: 0.1970 inches
• Insert Diameter: 1.34 inches
• Corner Radius: 0.0060 inches
• Min. Face Grooving Dia.: 0.8700 inches
• Insert Material: Carbide
• Coating/Finish: TiAlN
• Work Material: Stainless Steel, Hi Temp, Steel, Hardened Metals, Cast Iron
• Min. Face Grooving Feed: 0.0031 inches
• Max. Face Grooving Feed: 0.0050 inches
