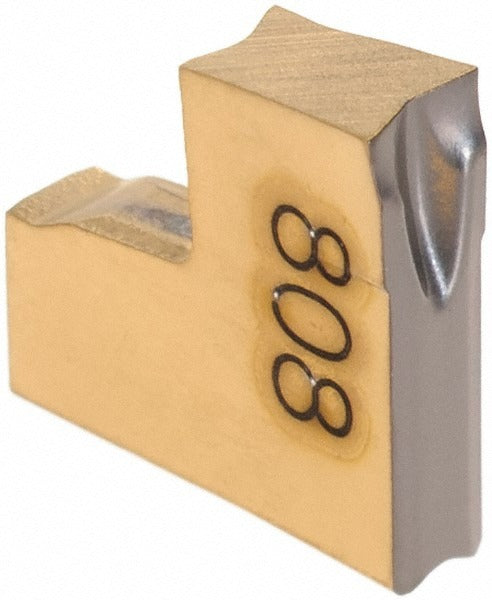

Iscar 6003635 Cutoff Insert 2mm Tang-grip IC808

Product Description

The ISCAR 6003635 is a solid carbide cutoff and parting insert designed for precision groove and cutoff operations on CNC lathes and turning centers. Based on the TAGR2JS6D designation, this Tang-Grip series insert features a 2 mm (0.0787 inch) cutting width with a 6-degree lead angle in a right-hand orientation. The IC808 grade uses a PVD-coated submicron carbide substrate, delivering wear resistance across a broad range of workpiece materials. A 7-degree relief angle and 0.02 mm corner radius support clean, consistent cuts. Licensed machinists and CNC turning specialists handle installation and application setup for this insert type.

This insert is suited for parting and grooving applications across universal workpiece materials, covering ISO material groups H, K, M, P, and S. These include steel, stainless steel, cast iron, hardened materials, and high-temperature alloys. The JS chipbreaker geometry targets chip control during cutoff operations in production turning environments. It is applicable in both light-duty finishing and moderate material-removal parting passes on CNC turning equipment.

Key Features

• 2 mm cutting width (0.0787 inch) for precise parting and grooving
• IC808 PVD-coated submicron carbide grade for extended tool life
• JS chipbreaker geometry for controlled chip evacuation
• 6-degree right-hand lead angle with 7-degree relief angle
• Tang-Grip clamping system for secure insert retention
• Universal ISO material compatibility: H, K, M, P, S groups

Compatibility

Designed for use in ISCAR Tang-Grip series toolholders that accept TAG-style inserts with a size code 2 seat. Confirm toolholder compatibility with the TAG insert style and right-hand lead angle specification before installation.

Installation Notes

Insert seating and clamping should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before changing inserts. Inspect the Tang-Grip pocket for chips or debris and clean the seat before installing the new insert to ensure proper clamping force and seating. Do not exceed the toolholder manufacturer's recommended depth-of-cut or feed rate for this insert size.
