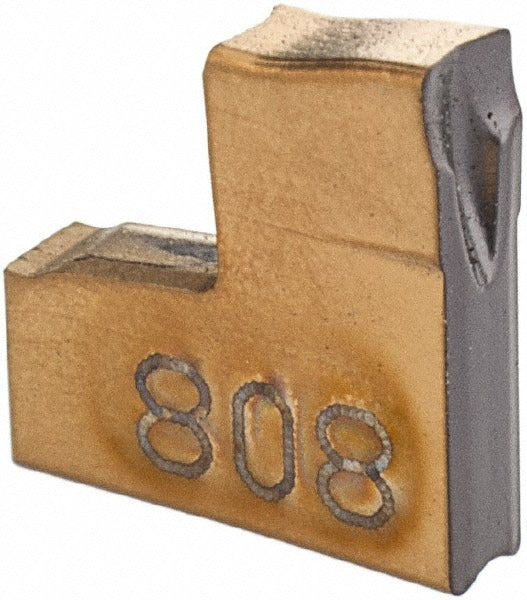

Iscar 6003632 Cutoff Insert 2mm Left Hand Tang-grip

Product Description

The ISCAR 6003632 is a solid carbide cutoff and parting insert designed for precision grooving and parting operations on CNC lathes and turning centers. It carries the IC808 manufacturer grade with a PVD-applied TiAlN, AlTiN, and TiN multilayer coating that supports extended tool life across a wide range of workpiece materials. The insert features a 2.00 mm cutting width, a 6-degree left-hand lead angle, a 7-degree relief angle, and a 0.20 mm corner radius. It belongs to the Tang-Grip series and uses a J-style chipbreaker geometry optimized for chip control during parting cuts.

This insert is intended for use in parting and cutoff applications in production machining environments. The IC808 grade with universal material code coverage suits steel, stainless steel, cast iron, non-ferrous alloys, and superalloys. The left-hand configuration makes it appropriate for applications requiring a specific feed direction or toolholder orientation. Machinists and CNC tooling specialists working in job shop and production settings will find this insert suited to medium-to-high cutting speed parting operations where chip control and edge stability are priorities.

Key Features

• IC808 grade with PVD coating combining TiAlN, AlTiN, and TiN layers for wear resistance and thermal stability
• 2.00 mm cutting width suitable for narrow parting grooves and cutoff operations
• 6-degree left-hand lead angle for directional chip flow control
• 7-degree relief angle reduces rubbing and supports clean parting cuts
• 0.20 mm corner radius for controlled edge geometry on finish parting passes
• Tang-Grip series clamping system for secure, repeatable insert seating

Compatibility

Designed for use in Tang-Grip series toolholders that accept TAG L 2J geometry inserts. Verify toolholder insert pocket specifications before installation to confirm seat and clamping compatibility.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling specialist with the machine in a fully stopped and locked-out state before insert indexing or replacement. Use the appropriate torx or clamping key specified by the toolholder manufacturer to seat the insert securely in the Tang-Grip pocket without overtightening. Inspect the insert seat and clamping surfaces for chips or debris before seating the insert. Confirm correct hand orientation of both insert and toolholder before resuming cutting operations.
