Iscar 5504857 Indexable Drill Insert XOMT06GF IC908

Product Description

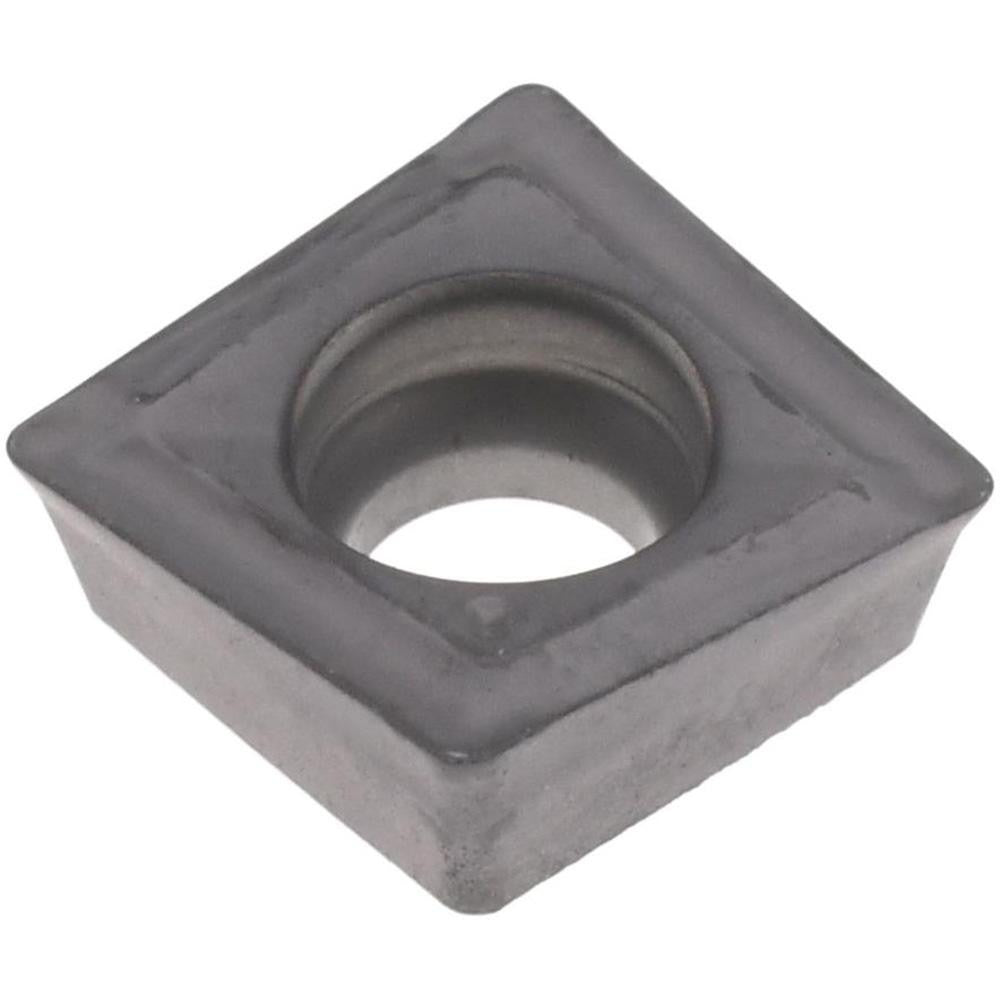

The ISCAR 5504857 is a solid carbide indexable drill insert in the XOMT style, designed for use with DRDRILLS series indexable drilling systems. Manufactured to grade IC908 with a PVD coating process, this insert provides wear resistance across a wide range of workpiece materials. The square insert shape features a 90-degree included angle, a 6.00 mm inscribed circle (0.2362 inches), a thickness of 0.1008 inches, and a corner radius of 0.40 mm (0.0157 inches). The GF chipbreaker geometry promotes controlled chip evacuation during drilling operations. This insert is sold individually with a minimum order quantity of 10 units.

The ISCAR 5504857 is intended for use in indexable drill toolholders from the DRDRILLS series. It is suited for general-purpose and production drilling applications where consistent hole quality and insert longevity are required. The IC908 grade with PVD coating supports machining across universal workpiece material classifications, including ISO material groups P, M, K, H, and S, making it applicable across steel, stainless steel, cast iron, hardened materials, and superalloys. Typical installations include CNC machining centers and turning centers in both job-shop and production environments.

Key Features

• IC908 grade PVD-coated solid carbide construction for broad material compatibility
• XOMT insert style with square shape and 90-degree included angle
• GF chipbreaker geometry for controlled chip formation during drilling
• 6.00 mm inscribed circle with 0.40 mm corner radius for precise cutting geometry
• Conforms to ISO 13399 tooling data standards
• Compatible with ISO material grades C1, C2, C6, and C7

Compatibility

Designed for use with ISCAR DRDRILLS series indexable drill toolholders requiring XOMT style inserts with insert size code 06 (insert size 060204). Compatible with workpiece material groups H, K, M, P, and S per ISO classification.

Installation Notes

Indexable insert replacement is performed by qualified machinists or tooling technicians. Power down and lock out the machine spindle before changing inserts. Use the appropriate torx or hex key as specified by the toolholder manufacturer to seat the insert securely without overtightening. Inspect the insert pocket for debris or damage before seating a new insert.
