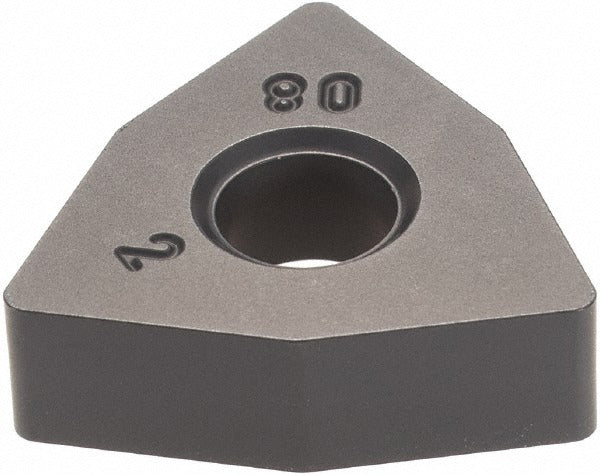

Iscar 5502698 Wnma 432 Turning Insert Solid Carbide

Product Description

The ISCAR 5502698 is a solid carbide turning insert in the WNMA style, designed for precision external and internal turning operations on CNC lathes and turning centers. It carries an IC428 manufacturer grade and features a CVD-applied TiC and Al2O3 coating for improved wear resistance and thermal stability at the cutting edge. The insert has an 80-degree trigon shape, a 0.5-inch inscribed circle, and a corner radius of 0.03125 inches (1/32 inch). Insert length is 8.7 mm (0.3425 inches) with a thickness of 0.1874 inches. It is held in the toolholder via clamp and pin and is part of the Isoturn series.

This insert is suited for turning cast iron, hardened materials, and steel workpieces in production and job-shop environments. The IC428 grade with CVD coating is well matched to interrupted and continuous cuts on cast iron and steel at moderate-to-high cutting speeds. Maximum depth of cut is 4.0 mm (0.1575 inches). The chip breaker designation is A, optimizing chip control across typical finishing and semi-finishing applications. It is installed in Isoturn-series toolholders that accept WNMA-style inserts. This product is sold individually with a minimum order quantity of 10 units.

Key Features

• IC428 grade with CVD TiC and Al2O3 coating for wear resistance on cast iron, hard materials, and steel
• 80-degree trigon (W) insert shape with N clearance code and M tolerance code
• 0.5-inch inscribed circle and 0.1575-inch maximum depth of cut
• Clamp and pin holding method for secure seating under interrupted cutting loads
• Conforms to ISO 13399 standard for cutting tool data representation
• A chip breaker geometry for reliable chip control in finishing and semi-finishing passes

Compatibility

Designed for use in Isoturn-series toolholders accepting WNMA-style inserts. Primary workpiece materials are cast iron (K), hard materials (H), and steel (P) per ISO material group codes.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before seating or removing inserts. Ensure the toolholder pocket and clamping surfaces are clean and free of chips before installing to maintain proper seating and edge geometry. Follow the toolholder manufacturer torque specifications for the clamping screw; do not overtighten, as this can crack the insert.
