Iscar 5502310 Tpu 321 IC20 Carbide Milling Insert

Product Description

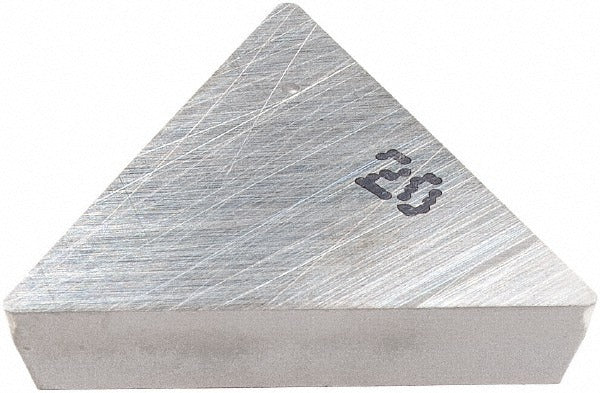

The ISCAR 5502310 is a solid carbide triangular milling insert in the ISCARMILL series, designed for high-performance milling operations across a range of demanding workpiece materials. Carrying the IC20 manufacturer grade and an uncoated bright finish, this insert features a positive rake geometry with an 11-degree rake angle, a honed cutting edge style, and three usable cutting edges. The corner radius measures 0.0157 inches (0.41 mm), and the inscribed circle diameter is 0.3748 inches. With a flat top chip breaker and neutral hand orientation, it suits a wide variety of milling setups where insert versatility and edge consistency are priorities. Licensed ISCARMILL toolholders using the clamp holding method are required for proper seating.

This insert is rated for use on stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials, covering ISO material codes M, K, N, S, and H. It is well suited for both roughing and finishing passes in milling applications where consistent chip control and edge integrity are essential. The ANSI code is TPU 321 IC20 and the ISO code is TPUN 160304, conforming to ANSI and ISO 13399 standards. Typical install environments include job shop CNC milling, production machining, and maintenance machining on difficult alloys.

Key Features

• Solid carbide construction with IC20 grade and uncoated bright finish for consistent edge performance
• Triangular insert shape with 60-degree included angle and three cutting edges for extended tool life per insert
• Positive rake angle of 11 degrees with honed cutting edge style for clean entry and reduced cutting forces
• Corner radius of 0.0157 inches (0.41 mm) provides controlled surface finish on finish passes
• Maximum depth of cut and effective cutting edge length of 0.6142 inches
• Flat top chip breaker geometry supports chip control across stainless steel, superalloys, and hard materials
• Neutral hand orientation allows use in a broad range of ISCARMILL toolholder configurations

Compatibility

Designed for use in ISCARMILL series toolholders that accept TPU-style inserts held by clamping. Conforms to ANSI code TPU 321 IC20 and ISO code TPUN 160304 per ISO 13399 standards, making it compatible with compliant tooling systems specifying that insert designation.

Installation Notes
