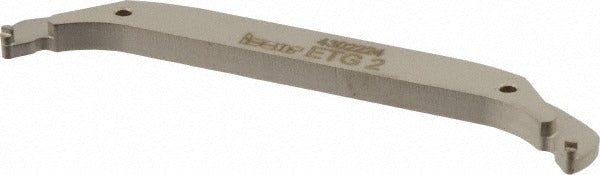

Iscar 4305469 Extractor Indexable Grooving Turning Tgad

Product Description

The ISCAR 4305469 is an extractor tool designed for use with indexable grooving and turning systems. It facilitates the removal and seating of indexable inserts in TGAD-style toolholders, reducing the risk of hand injury and insert damage during changeover. Weighing 0.25 pounds, this compact hand tool is a standard accessory in any shop or field kit running ISCAR Turn Groove toolholders. Machinists and tool crib personnel handling frequent insert changes will find this extractor a necessary part of routine maintenance workflow.

This extractor is intended for use with TGAD series toolholders in the ISCAR Turn Groove product line. It is suited for both production floor and job shop environments where indexable grooving and turning inserts are changed regularly. The extractor helps maintain consistent insert positioning and protects both the insert and the toolholder pocket during the change process.

Key Features

• Designed specifically for TGAD toolholder compatibility in the ISCAR Turn Groove series
• Facilitates safe and accurate insert removal and seating
• Lightweight at 0.25 pounds for easy handling and storage
• Sold individually — package quantity of 1
• Reduces risk of insert or toolholder pocket damage during changeover

Compatibility

Designed for use with TGAD-style indexable grooving and turning toolholders in the ISCAR Turn Groove series.

Installation Notes

This extractor is used by machinists and tool crib technicians during insert changeover on indexable grooving and turning toolholders. Ensure the machine spindle is fully stopped and the toolholder is secured or removed from the turret before performing any insert change. Use the extractor as directed by the toolholder manufacturer to avoid damaging the insert seating pocket. Do not apply excessive force — the extractor is designed for controlled, precise engagement with the insert and toolholder.
