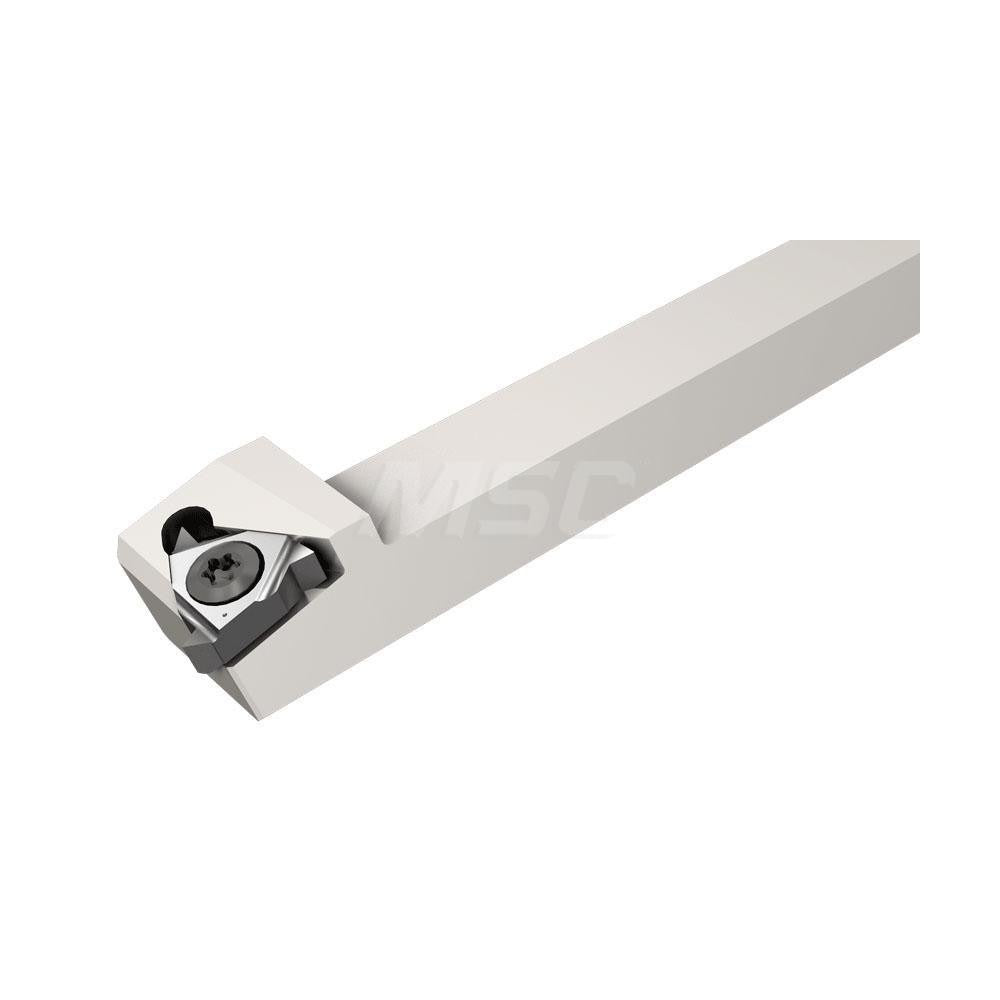

Iscar 3800001 Threading Toolholder External Right Hand 16mm

Product Description

The ISCAR 3800001 is an external, right-hand indexable threading toolholder from the IscarThread series, designed for use on CNC lathes and turning centers in production machining environments. The toolholder features a 16 mm square shank (0.6299 inches) and an overall length of 100 mm (3.937 inches), making it compatible with standard tool posts and turrets sized for 16 mm tooling. It accepts a wide range of ER and ER/L style threading inserts, secured by a screw-clamp holding method. This toolholder is suited for machinists and tooling technicians running external thread forms across multiple thread standards.

This toolholder is intended for external threading operations on turned components in both job-shop and production settings. It is designed to cut a broad range of thread profiles by swapping compatible ER and ER/L inserts, covering standard, pipe, and specialty thread forms including UN, NPT, NPTF, ISO, BSPT, ACME, STACME, API, APIR RD, MJ, UNJ, TR, RND, SAGE, and PG profiles. It is not configured for coolant-through delivery and does not include a coolant port.

Key Features

• External threading application with right-hand cutting orientation
• 16 mm x 16 mm square shank fits standard 16 mm tool blocks and turret stations
• Screw-clamp insert holding method for positive insert indexing and repeatability
• Compatible with ER and ER/L insert styles across 20-plus thread form standards
• 100 mm overall length (3.937 inches) suits typical turning center tool post clearance
• No coolant-through port; suitable for dry or externally applied coolant setups

Compatibility

Accepts ER and ER/L style threading inserts compatible with the following thread forms: BUT, EL, MJ, NPTF, PG, 55, 60, ABUT, ACME, API, APIR RD, BSPT, ISO, NPT, RND, SAGE, STACME, TR, UN, and UNJ. Toolholder style is SE. Part of the ISCAR IscarThread series.

Installation Notes

Installation is performed by a qualified machinist or tooling technician. Before mounting, power down the machine and verify the turret or tool post is locked out per shop lockout/tagout procedures. Ensure the tool block or turret pocket is sized for a 16 mm shank before seating the holder. Select and index the appropriate ER or ER/L insert for the target thread form and secure it with the clamping screw before initiating any cut.
