Iscar 3602236 Indexable Turning Toolholder Rh Pdac

Product Description

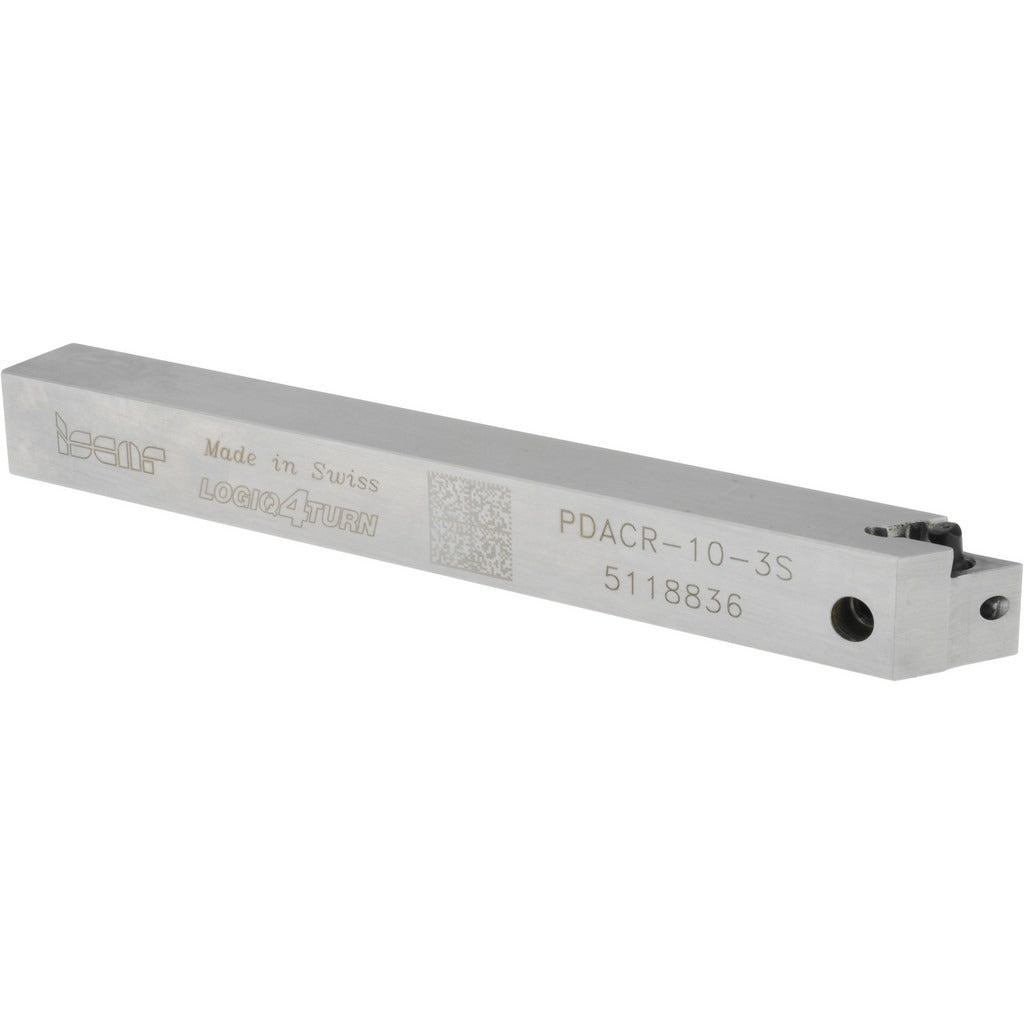

The ISCAR 3602236 is a right-hand PDAC-style indexable turning toolholder designed for precision external turning operations on CNC and manual lathes. Built around the Isoturn series platform, this toolholder accepts DC..3 inserts and uses a lever clamping method to secure the insert reliably during cuts. The shank measures 0.625 inches wide by 0.625 inches tall, with an overall length of 5.9 inches. A neutral rake angle of 0 degrees provides balanced cutting geometry suited to a range of workpiece materials. The toolholder is engineered to ISO 13399 standards, which simplifies tool data integration with CAM and tooling management software.

This toolholder is intended for turning applications in shop environments where consistent insert indexing and secure clamping are required. It is compatible with the DCGT3-0-SM insert size code, making it appropriate for finish turning passes where controlled chip formation is a priority. The right-hand cutting direction suits standard lathe setups where the tool feeds from right to left across the workpiece. No coolant-through capability is included, so external coolant delivery must be used if coolant is required for the application.

Key Features

• PDAC toolholder style with neutral rake angle (0 degrees) for versatile turning geometry
• Lever insert holding method provides firm, repeatable insert clamping
• Accepts DC..3 inserts, compatible with DCGT3-0-SM insert size code
• Right-hand cutting direction for standard lathe feed orientation
• Conforms to ISO 13399 for streamlined tool data management
• Square shank at 0.625 inches x 0.625 inches fits standard toolpost blocks

Compatibility

Designed to accept DC..3 series inserts with a compatible insert size code of DCGT3-0-SM. Part of the ISCAR Isoturn series toolholder platform.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Secure the shank fully within the toolpost or quick-change block before operating the machine, and confirm the insert is properly seated and locked via the lever clamp before taking any cut. Power down and lock out the lathe spindle before changing inserts or adjusting the toolholder. Follow applicable shop safety standards and machine tool manufacturer guidelines for toolholder torque and overhang limits.
