Iscar 3602228 Indexable Turning Toolholder Pclcr 08-3S

Product Description

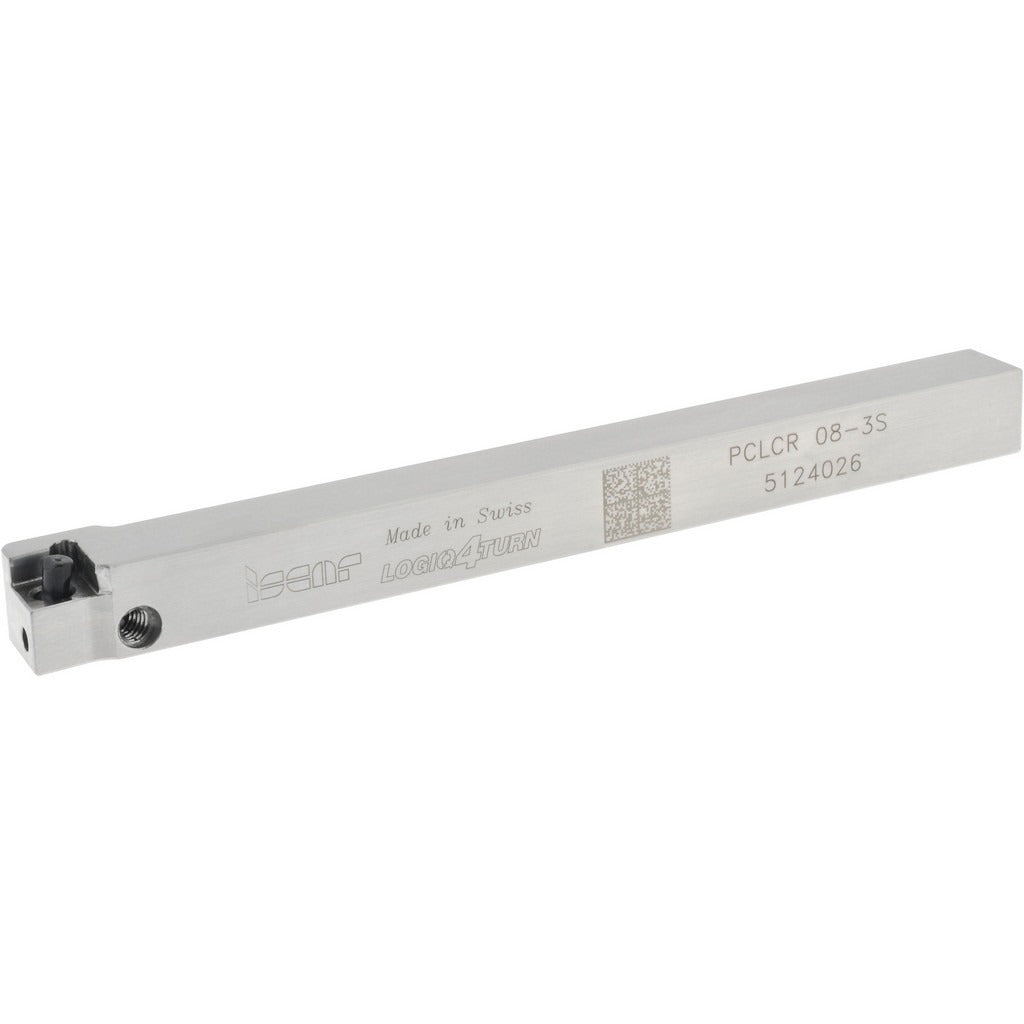

The ISCAR 3602228 is a PCLCR 08-3S style indexable turning toolholder from the Isoturn series, designed for precision external turning operations on CNC and manual lathes. The toolholder features a 0.5 x 0.5 inch square shank and an overall length of 5.905 inches, providing a rigid, consistent platform for indexable insert cutting. It accepts CCMT 3-0-SM inserts and is configured for right-hand cutting with a 0-degree rake angle. This holder is installed by machinists and CNC operators in production and job-shop turning environments where repeatability and insert indexability are critical.

This toolholder is suited for turning operations in both production and job-shop environments. It is designed for use on lathes where a 0.5 inch square shank is the standard tool block or turret requirement. The PCLCR style provides a 95-degree lead angle geometry, appropriate for general-purpose turning passes on a range of workpiece materials. The back-of-bar to cutting edge measurement is 0.5 inch, consistent with standard OD turning setups. Compliant with ISO 13399 for tool data representation, it integrates with CAM and tool management systems that reference that standard.

Key Features

• PCLCR 08-3S toolholder style from the ISCAR Isoturn series
• 0.5 x 0.5 inch square shank for standard turret and tool block mounting
• Overall length of 5.905 inches for consistent reach and rigidity
• Right-hand cutting direction with 0-degree rake angle
• Accepts CCMT 3-0-SM indexable inserts for quick changeover
• ISO 13399 compliant for integration with tool management and CAM systems

Compatibility

Designed for use with CCMT 3-0-SM indexable inserts. Compatible with lathe tool blocks and CNC turrets accepting a 0.5 x 0.5 inch square shank toolholder. Refer to your machine tool documentation to confirm turret or tool block compatibility before installation.

Installation Notes

Installation is performed by machinists or CNC setup technicians. Ensure the lathe or turning center is fully powered down and the spindle is locked before mounting or removing the toolholder from the turret. Secure the shank in the tool block according to the machine manufacturer torque guidelines — do not rely on feel alone. Confirm insert seating and clamping before resuming cutting operations.
