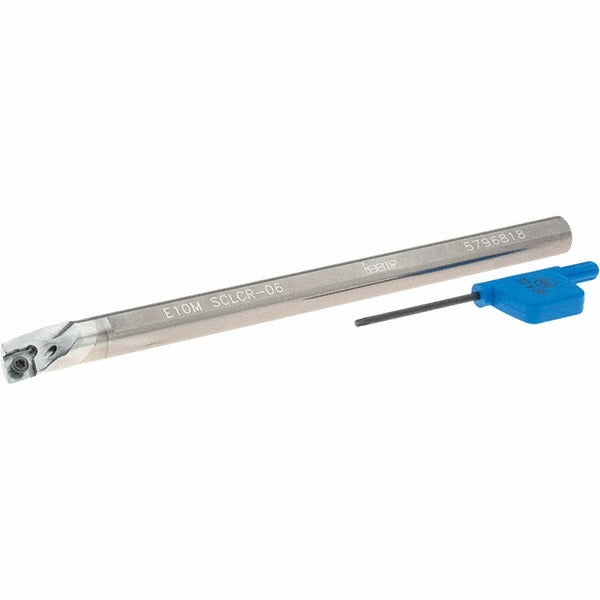

Iscar 3601907 Indexable Boring Bar 14mm E-sclc

Product Description

The ISCAR 3601907 is a solid carbide indexable boring bar designed for internal turning operations on CNC lathes and turning centers. It features an E-SCLC toolholder style with a 14mm minimum bore diameter, a 10mm shank diameter (0.3937 inches), and an overall length of 150mm (5.906 inches). The bar uses CC.T 0602.. diamond-shaped inserts held by a screw-clamping method with a negative rake angle of -7 degrees. Through-coolant capability directs cutting fluid directly to the cutting zone, supporting heat control and chip evacuation during deep bore work. Machinists and tooling technicians working in precision turning applications will find this bar appropriate for small-diameter internal features.

This boring bar is suited for right-hand cutting in internal turning setups on CNC and manual lathes handling small bore diameters. It belongs to the Isoturn series and is classified under cutting tool application: turning. The 14mm minimum bore diameter makes it appropriate for tight internal profiles where clearance is limited. Compatible inserts are CC.T 0602.. diamond-shaped inserts with a 0602 size code. The center-to-cutting-edge dimension is 7mm (0.2756 inches), which is relevant when calculating tool offset and boring depth in setup.

Key Features

• 14mm minimum bore diameter (0.5512 inches) for small internal turning work
• Solid carbide construction for rigidity and wear resistance in precision boring
• Through-coolant design directs fluid to the cutting edge for heat management and chip removal
• Screw-clamping insert retention using CC.T 0602.. diamond-shaped inserts
• Negative rake angle of -7 degrees suits harder workpiece materials
• Conforms to ISO 13399 tooling data standards for CAM and tool management integration

Compatibility

Designed for use with CC.T 0602.. diamond-shaped inserts, 0602 size code, in right-hand E-SCLC style toolholders. Belongs to the ISCAR Isoturn series.

Installation Notes

This boring bar is installed and set up by qualified machinists or CNC tooling technicians. Before changing or indexing inserts, power down the machine and engage all safety locks per shop protocol. Ensure the shank is properly clamped in a matching bore bar holder or turret pocket to the correct torque per machine tool manufacturer specifications. Verify through-coolant line connections and pressure before initiating a cut.
