Iscar 3380565 Replaceable Drill Tip 1.25in Carbide IC908

Product Description

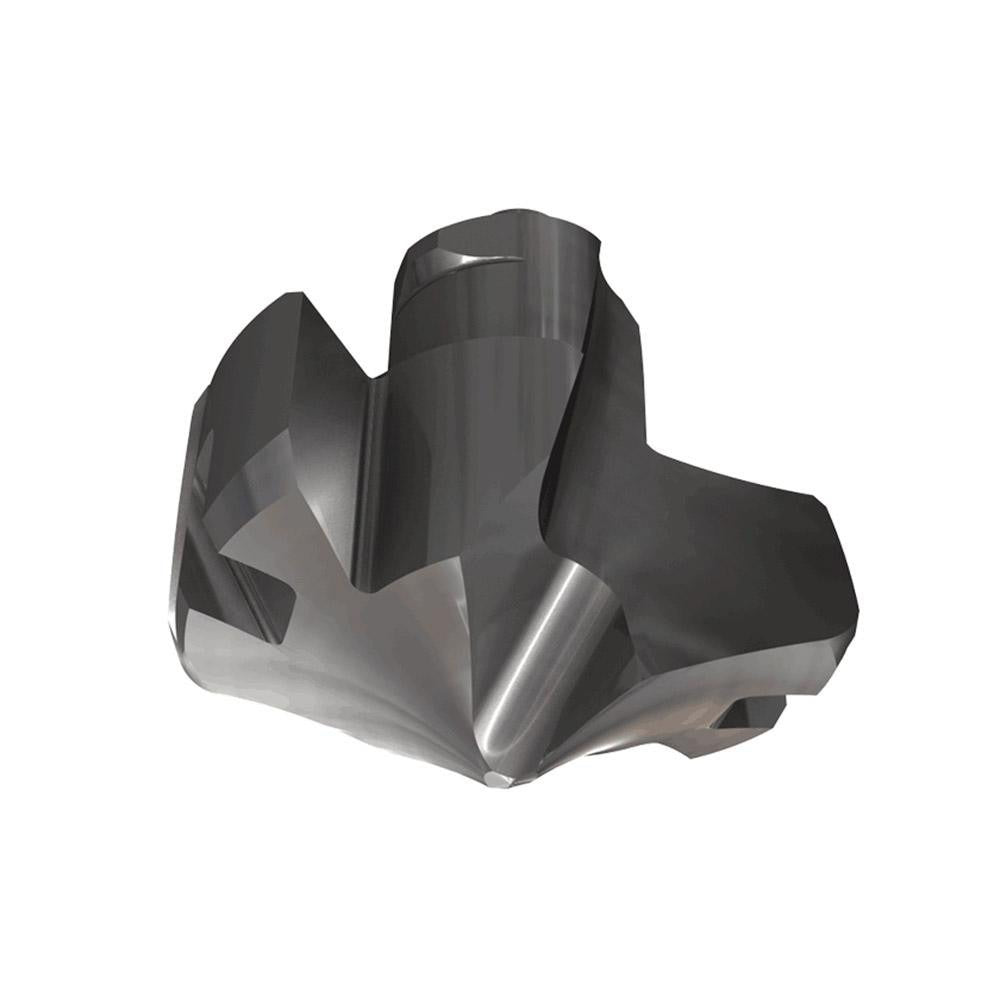

The ISCAR 3380565 is a solid carbide replaceable drill tip designed for high-performance hole making in metalworking applications. Part of the HCP-IQ series, this tip carries a 1.25-inch (31.75 mm) cutting diameter and is manufactured to the IC908 submicron carbide grade. A TiAlN coating applied via PVD process improves wear resistance and thermal stability at the cutting edge. The 137-degree drill point angle and self-centering point geometry reduce wandering at entry, while the web-thinned design lowers thrust force requirements. Two helical flutes promote chip evacuation throughout the cut. This tip is installed by machinists and toolroom technicians in production drilling operations.

The 3380565 is engineered for primary use in steel and cast iron workpiece materials (ISO material codes P and K). Secondary suitability extends to stainless steel, superalloys, titanium, and hard materials (ISO codes M, S, and H). Typical applications include through-hole drilling, chamfering, and gundrilling operations on machining centers and CNC lathes. The HCP-IQ insert seat interface ensures repeatable seating and edge location across tool changes, making it well-suited to high-volume production environments where consistent hole diameter and position are critical.

Key Features

• 1.25-inch cutting diameter, insert seat size 31
• IC908 submicron solid carbide grade with PVD-applied TiAlN coating
• 137-degree included angle with self-centering point for accurate entry
• Web-thinned geometry reduces axial thrust and improves chip flow
• Two helical flutes in regular spiral configuration for efficient evacuation
• Conforms to ISO 13399 tooling data standards

Compatibility

Designed for use with HCP-IQ series drill bodies accepting insert seat size 31. ISO number HCP 3175-IQ. Clamp-style insert holding method required. Coolant-through bodies are not required for this tip.

Installation Notes

Replaceable drill tips of this type are seated and clamped by qualified machinists or toolroom technicians. Power down the spindle and lock out the machine before any tip change. Ensure the insert pocket and seating surfaces are clean and free of chips or burrs before seating the new tip, as debris will affect runout and hole quality. Follow the toolholder manufacturer's clamping torque specifications for the HCP-IQ body; do not over-torque the clamp screw.
