Iscar 3346489 Replaceable-tip Drill 5-5.4mm Sumocham Dcn

Product Description

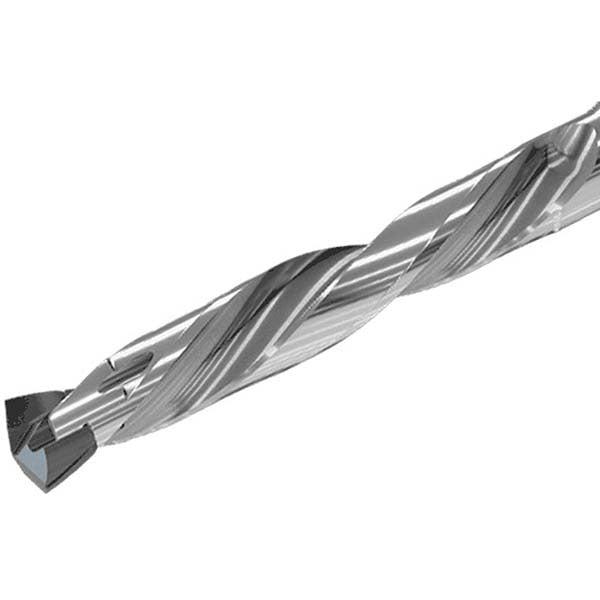

The ISCAR 3346489 is a SumoCham-series replaceable-tip drill body designed for precision hole-making in metalworking applications. It accepts ICP-style replaceable inserts at an Insert Seat Size 5, allowing tip changes without removing the body from the toolholder. The drill covers a diameter range of 5 to 5.4 mm (0.1969 to 0.2126 inches) with a maximum drill depth of 15 mm (0.5906 inches) at a 3xD depth-to-diameter ratio. Overall length is 61.3 mm (2.413 inches). Through-coolant capability is built in, supporting higher feed rates and longer tool life in demanding cutting conditions. This tool body is intended for use by machinists and tool-room technicians in CNC drilling operations.

The 3346489 fits into a 6 mm (0.2362 inch) straight-cylindrical shank toolholder and is suited for close-tolerance drilling in production and job-shop environments. Its right-hand cutting direction and DCN toolholder style make it compatible with standard CNC machining center setups. The replaceable-tip design reduces downtime during tip changes and is well-suited for high-volume production runs where consistent hole geometry is required across ferrous and non-ferrous materials.

Key Features

• SumoCham series DCN-style drill body with replaceable ICP insert tips — no full-tool replacement needed
• Diameter range: 5 to 5.4 mm (0.1969 to 0.2126 inches) for flexible hole sizing
• 3xD depth-to-diameter ratio with 15 mm (0.5906 inch) maximum drill depth
• Through-coolant design channels coolant directly to the cutting zone for improved chip evacuation and tip life
• Right-hand cutting direction; straight-cylindrical 6 mm shank for direct CNC toolholder mounting
• Overall length of 61.3 mm (2.413 inches) with a 35 mm (1.378 inch) shank length

Compatibility

Designed for use with ICP-style replaceable drill tips at Insert Seat Size 5 within the ISCAR SumoCham DCN drill body platform. Compatible with CNC machining centers using straight-cylindrical 6 mm shank toolholders.

Installation Notes

Installation and tip changes should be performed by a qualified machinist or tooling technician with the machine fully powered down and the spindle locked. Ensure the toolholder bore and shank surfaces are clean and free of debris before mounting. Through-coolant passages should be verified clear before operation. Follow the machine tool manufacturer and ISCAR tooling guidelines for clamping torque and runout verification prior to first use.
