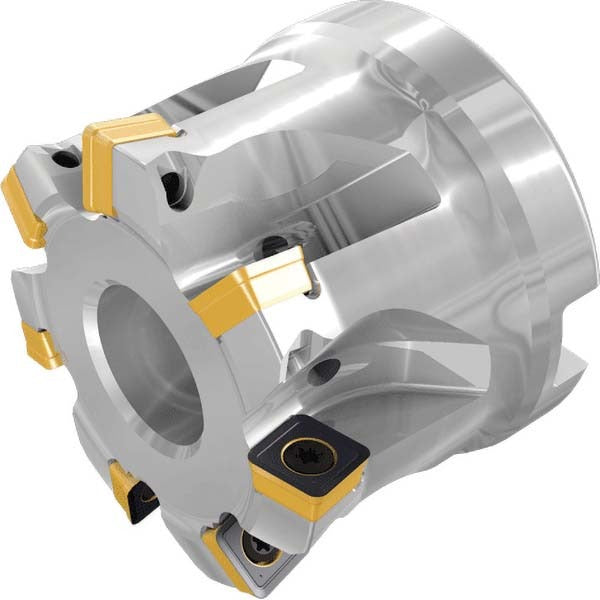

Iscar 3323465 High-feed Face Mill 2 in 7 Insert

Product Description

The ISCAR 3323465 is an indexable high-feed face mill designed for aggressive material removal at high feed rates in milling applications. Built on the FFQ4 cutter platform, it accepts 7 SOMT or SOMW style inserts secured by screw-style insert holding, delivering rigid, repeatable cutting performance. The cutter features through-coolant capability to manage heat and chip evacuation at the cutting zone. With a maximum cutting diameter of 2 inches, a minimum cutting diameter of 1.439 inches, and a maximum depth of cut of 0.0472 inches, this tool is engineered for high-feed, shallow-depth passes on CNC machining centers. It runs right-hand cutting direction and supports up to 7000 RPM.

This face mill is suited for production environments running CNC vertical or horizontal machining centers where high material removal rates are the priority. The FFQ4 series platform is commonly applied in automotive, aerospace, and general metalworking shops handling steel, cast iron, and similar workpiece materials. The 0.75 inch arbor hole allows mounting on standard arbors typical in production milling setups. Machinists and tooling specialists handling high-feed milling programs will find this cutter ready for demanding cycle-time reduction work.

Key Features

• FFQ4 cutter platform accepts 7 SOMT or SOMW inserts, secured by screw-style clamping
• Maximum cutting diameter of 2 inches with adjustability down to 1.439 inches
• Maximum depth of cut of 0.0472 inches suited for high-feed, light-pass milling strategies
• Through-coolant construction for active chip and heat management at the cutting edge
• Right-hand cutting direction with maximum spindle speed of 7000 RPM
• Maximum ramping angle of 1.50 degrees for helical entry or ramping operations

Compatibility

Compatible with FFQ4 SOMT 0904 insert style. Accepts SOMT and SOMW compatible inserts. Designed for use on standard 0.75 inch arbor holders on CNC milling machines within the FFQ4 series tooling system.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Power down and lock out the spindle before mounting or removing the cutter body from the arbor. Confirm insert seating and screw torque according to ISCAR tooling guidelines before running at speed. Verify through-coolant passages are clear and coolant supply is active prior to engaging the cut.
